SaltStack--项目实战

作者笔名: 不羁
52 次浏览     评价:
 2019-12-2

编辑推荐:
本文首先介绍saltstack的项目环境准备,进行软件安装与配置,其次对项目整体部署,希望对您的学习有所帮助。
本文来自于个人博客,由火龙果软件Alice编辑、推荐。

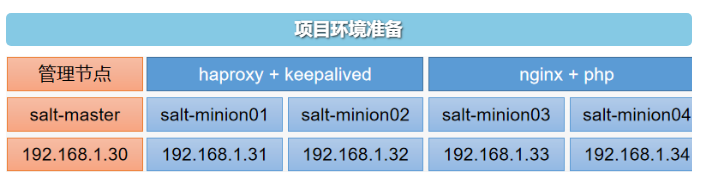

项目架构规划

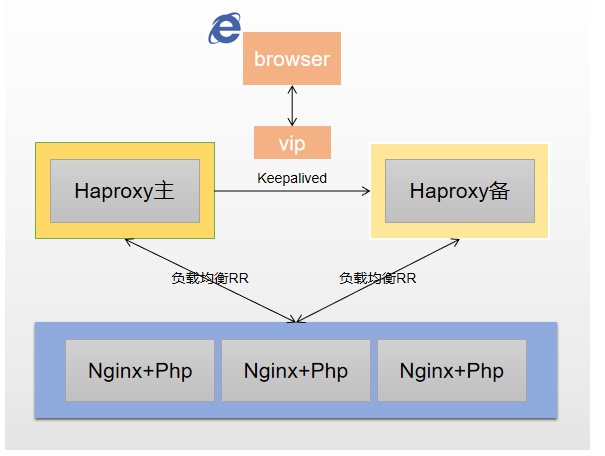

后端web服务器使用Nginx+Php作为站点,通过HAproxy做负载均衡,Keepalived做高可用

说明: 关闭防火墙、selinux、时间同步等

host绑定

[root@salt-master ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.1.30 salt-master
192.168.1.31 salt-minion01
192.168.1.32 salt-minion02
192.168.1.33 salt-minion03
192.168.1.34 salt-minion04
[root@salt-master ~]# for i in `seq 4`; do scp /etc/hosts 192.168.1.3$i:/etc/hosts ; done

软件安装

参考地址

1)Master上软件安装

[root@salt-master ~]# yum -y install https://mirrors.aliyun.com/saltstack/yum/redhat/salt-repo-latest-2.el7.noarch.rpm
[root@salt-master ~]# sed -i "s/repo.saltstack.com/mirrors.aliyun.com\/saltstack/g" /etc/yum.repos.d/salt-latest.repo
[root@salt-master ~]# yum -y install salt-master
[root@salt-master ~]# systemctl enable salt-master
[root@salt-master ~]# systemctl start salt-master

2)Minion上软件安装并配置

# yum -y install https://mirrors.aliyun.com/saltstack/yum/redhat/salt-repo-latest-2.el7.noarch.rpm
# yum -y install salt-minion
# cp /etc/salt/minion{,.back}
# sed -i '/#master: /c\master: salt-master' /etc/salt/minion
# systemctl enable salt-minion
# systemctl start salt-minion

Master上认证

[root@salt-master ~]# systemctl restart salt-master
[root@salt-master ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
salt-minion01
salt-minion02
salt-minion03
salt-minion04
Rejected Keys:

[root@salt-master ~]# salt-key -A -y
The following keys are going to be accepted:
Unaccepted Keys:
salt-minion01
salt-minion02
salt-minion03
salt-minion04
Key for minion salt-minion01 accepted.
Key for minion salt-minion02 accepted.
Key for minion salt-minion03 accepted.
Key for minion salt-minion04 accepted.
[root@salt-master ~]# salt-key -L
Accepted Keys:
salt-minion01
salt-minion02
salt-minion03
salt-minion04
Denied Keys:
Unaccepted Keys:
Rejected Keys:
[root@salt-master ~]# salt '*' test.ping
salt-minion01:
True
salt-minion02:
True
salt-minion03:
True
salt-minion04:
True

Master上state编写

state环境设置

说明:该案例在prod环境下配置,在prod下面创建了一个modules的目录,所有的安装配置都放在这个目录下面了,里面分别又对应创建了对应的软件目录,每个软件目录下面的files目录用来存放的是软件包或者配置文件模板

[root@salt-master ~]# vim /etc/salt/master
file_roots:
base:
- /srv/salt/base
test:
- /srv/salt/test
prod:
- /srv/salt/prod
dev:
- /srv/salt/dev
[root@salt-master ~]# systemctl restart salt-master
[root@salt-master ~]# mkdir -p /srv/salt/{base,
test,prod,dev}
[root@salt-master ~]# mkdir -p /srv/salt/prod/modules/{nginx,php,mysql,haproxy,
keepalived,lnmp}/files
[root@salt-master ~]# mkdir /srv/salt/prod/modules/user
[root@salt-master ~]# tree /srv/salt/prod/modules/
/srv/salt/prod/modules/
├── haproxy
│ └── files
├── keepalived
│ └── files
├── lnmp
│ └── files
├── mysql
│ └── files
├── nginx
│ └── files
├── php
│ └── files
└── user
directories, 0 files

sls文件编写

pkg基础包

安装源码编译所需要用到的基础软件包

[root@salt-master ~]# cat /srv/salt/prod/modules/pkg.sls
pkg-install:
pkg.installed:
- pkgs:
- gcc
- gcc-c++
- make
- autoconf
- glibc
- glibc-devel
- glib2
- glib2-devel
- pcre
- pcre-devel
- zlib
- zlib-devel
- openssl
- openssl-devel
- libpng
- libpng-devel
- freetype
- freetype-devel
- libxml2
- libxml2-devel
- bzip2
- bzip2-devel
- ncurses
- curl
- gdbm-devel
- libXpm-devel
- libX11-devel
- gd-devel
- gmp-devel
- readline-devel
- libxslt-devel
- expat-devel
- xmlrpc-c
- xmlrpc-c-devel

useradd

创建网站运行用户

[root@salt-master ~]# cat /srv/salt/prod/modules/user/www.sls
www-user-group:
group.present:
- name: www
- gid: 2000

user.present:
- name: www
- fullname: www
- shell: /sbin/nologin
- uid: 2000
- gid: 2000
- unless: id www

nginx

1)软件包准备,及配置文件模板,启动文件模板

[root@salt-master ~]# cd /srv/salt/prod/modules/nginx/
[root@salt-master nginx]# tree
.
├── files
│ ├── nginx-1.12.2.tar.gz
│ ├── nginx-1.16.0.tar.gz
│ ├── nginx.conf.template
│ └── nginx.service.template
├── install.sls
└── service.sls
directory, 6 files

2)install.sls

[root@salt-master nginx]# cat install.sls
{% set nginx_version = "1.16.0"%}
include:
- modules.pkg
- modules.user.www

nginx-install:
file.managed:
- name: /usr/local/src/nginx-{{ nginx_version }}.tar.gz
- source: salt://modules/nginx/files/nginx-{{ nginx_version }}.tar.gz
- user: root
- group: root
- mode: 644

cmd.run:
- name: cd /usr/local/src/ && tar xf nginx-{{ nginx_version }}.tar.gz && cd nginx-{{ nginx_version }} && ./configure --prefix=/usr/local/nginx-{{ nginx_version }} --user=root --group=root --with-http_ssl_module --with-stream --with-http_stub_status_module --with-file-aio --with-http_gzip_static_module && make && make install && ln -s /usr/local/nginx-{{ nginx_version }} /usr/local/nginx
- unless: test -d /usr/local/nginx-{{ nginx_version }} && test -L /usr/local/nginx
- require:
- file: nginx-install
- pkg: pkg-install

3)service.sls

[root@salt-master nginx]# cat service.sls
#引入nginx安装sls
include:
- modules.nginx.install

#添加systemctl
nginx-init:
file.managed:
- name: /usr/lib/systemd/system/nginx.service
- source: salt://modules/nginx/files/nginx.service.template
- user: root
- group: root
- mode: 755
- unless: test -f /usr/lib/systemd/system/nginx.service
cmd.run:
- name: systemctl daemon-reload
- require:
- file: nginx-init

#配置文件
/usr/local/nginx/conf/nginx.conf:
file.managed:
- source: salt://modules/nginx/files/nginx.conf.template
- user: root
- group: root
- mode: 644

#启动nginx
nginx-service:
file.directory:
- name: /usr/local/nginx/conf/conf.d
- user: root
- group: root
- mode: 755
- require:
- cmd: nginx-install
service.running:
- name: nginx
- enable: True
- reload: True
- require:
- cmd: nginx-init
- watch:
- file: /usr/local/nginx/conf/nginx.conf
- file: nginx-service

php

1)软件包准备,及配置文件模板,启动文件模板

[root@salt-master ~]# cd /srv/salt/prod/modules/php/
[root@salt-master php]# tree
.
├── files
│ ├── php-5.6.40.tar.gz
│ ├── php-fpm.conf.template
│ ├── php-fpm.service.template
│ ├── php-fpm.template
│ └── php.ini.template
├── install.sls
└── service.sls
directory, 7 files

2)install.sls

[root@salt-master php]# cat install.sls
{% set php_version = "5.6.40" %}
include:
- modules.pkg

php-install:
file.managed:
- name: /usr/local/src/php-{{ php_version }}.tar.gz
- source: salt://modules/php/files/php-{{ php_version }}.tar.gz
- user: root
- group: root
- mode: 644

cmd.run:
- name: cd /usr/local/src/ && tar xf php-{{ php_version }}.tar.gz && cd php-{{ php_version }} && ./configure
--prefix=/usr/local/php-{{ php_version }} --with-curl
--with-freetype-dir --with-gd --with-gettext
--with-iconv-dir
--with-jpeg-dir --with-kerberos --with-libdir=lib64
--with-libxml-dir --with-mysql --with-mysqli
--with-openssl --with-pcre-regex --with-pdo-mysql
--with-dpo-sqlite --with-pear --with-png-dir
--with-openssl --with-xmlrpc --with-xsl --with-zlib
--enable-fpm --enable-bcmath --enable-libxml
--enable-inline-optimization --enable-gd-native-ttf
--enable-mbregex --enable-mbstring --enable-opcache
--enable-pcntl --enable-shmop --enable-soap
--enable-sockets --enable-sysvsem --enable-xml
--enable-zip && make && make install && ln -s
/usr/local/php-{{ php_version }} /usr/local/php
- unless: test -d /usr/local/php-{{ php_version }}
&& test -L /usr/local/php
- require:
- file: php-install
- pkg: pkg-install

3)service.sls

[root@salt-master php]# cat service.sls
#引入php安装的sls
include:
- modules.php.install
#php-ini配置文件配置
php-ini:
file.managed:
- name: /usr/local/php/etc/php.ini
- source: salt://modules/php/files/php.ini.template
- user: root
- group: root
- mode: 644
- require:
- cmd: php-install
cmd.run:
- name: ln -s /usr/local/php/etc/php.ini /etc/php.ini
- unless: test -L /etc/php.ini
- require:
- file: php-ini

#php-fpm配置文件配置
php-fpm:
file.managed:
- name: /usr/local/php/etc/php-fpm.conf
- source: salt://modules/php/files/php-fpm.conf.template
- user: root
- group: root
- mode: 644
- require:
- cmd: php-install
cmd.run:
- name: ln -s /usr/local/php/etc/php-fpm.conf
/etc/php-fpm.conf
- unless: test -L /etc/php-fpm.conf
- require:
- file: php-fpm
#加入system启动
php-systemd:
file.managed:
- name: /usr/lib/systemd/system/php-fpm.service
- source: salt://modules/php/files/php-fpm.service.template
- user: root
- group: root
- mode: 644
- require:
- cmd: php-install

#加入/etc/init.d/启动
php-init:
file.managed:
- name: /etc/init.d/php-fpm
- source: salt://modules/php/files/php-fpm.template
- user: root
- group: root
- mode: 755
- require:
- cmd: php-install

#启动php-fpm
php-service:
service.running:
- name: php-fpm
- enable: True
- require:
- file: php-systemd
- watch:
- file: php-fpm
- file: php-ini

mysql

1)配置文件模板准备

[root@salt-master ~]# cd /srv/salt/prod/modules/mysql/
[root@salt-master mysql]# tree
.
├── files
│ └── my.cnf
├── install.sls
└── service.sls
directory, 3 files

2)install.sls

[root@salt-master mysql]# cat install.sls
mariadb-install:
pkg.installed:
- pkgs:
- mariadb-server
- mariadb

3)service.sls

[root@salt-master mysql]# cat service.sls
#引入mysql安装的sls
include:
- modules.mysql.install

#my.cnf配置文件
mariadb-config:
file.managed:
- name: /etc/my.cnf
- source: salt://modules/mysql/files/my.cnf
- user: root
- group: root
- mode: 644
- require:
- pkg: mariadb-install

#启动mariadb
mariadb-service:
service.running:
- name: mariadb
- enable: True
- watch:
- file: mariadb-config
- require:
- pkg: mariadb-install
- file: mariadb-config

lnmp

1)准备测试文件php info 和nginx虚拟主机配置文件

[root@salt-master ~]# cd /srv/salt/prod/modules/lnmp/
[root@salt-master lnmp]# tree
.
├── files
│ ├── index.php
│ └── www.conf
└── www.sls
directory, 3 files

2)www.sls

[root@salt-master lnmp]# cat www.sls
#引入nginx、php、mysql的安装
include:
- modules.nginx.service
- modules.php.service
- modules.mysql.service

#虚拟主机web站点目录创建
web-www:
file.directory:
- name: /opt/www
- user: www
- group: www
- mode: 755

#虚拟主机配置文件配置
web-www-conf:
file.managed:
- name: /usr/local/nginx/conf/conf.d/www.conf
- source: salt://modules/lnmp/files/www.conf
- user: root
- group: root
- mode: 644
- require:
- file: web-www
- watch_in:
- service: nginx-service
- template: jinja
- defaults:
PORT: 80
IPADDR: {{ grains['fqdn_ip4'][0] }}

#phpinfo测试文件准备
web-index:
file.managed:
- name: /opt/www/index.php
- source: salt://modules/lnmp/files/index.php
- user: www
- group: www
- mode: 644

测试lnmp是否OK

1)Top file编写

[root@salt-master ~]# cat /srv/salt/base/top.sls
prod:
"salt-minion0[3-4]":
- modules.lnmp.www

2)执行高级状态

[root@salt-master ~]# salt '*' state.highstate

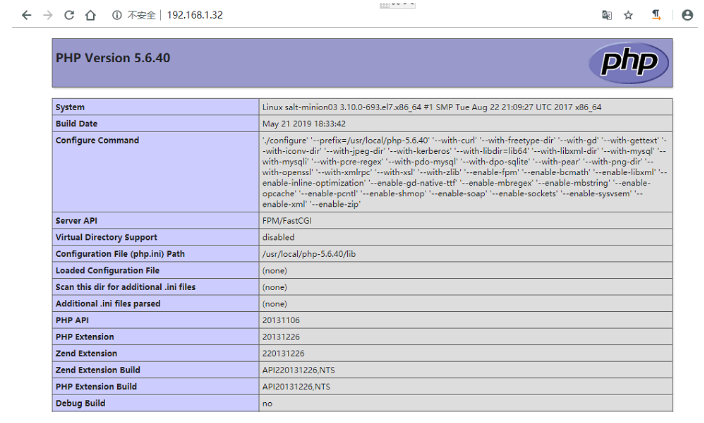

3)访问测试

haproxy

1)配置文件准备

[root@salt-master ~]# cd /srv/salt/prod/modules/haproxy/
[root@salt-master haproxy]# tree
.
├── files
│ └── haproxy.cfg
├── install.sls
└── service.sls
directory, 3 files

2)install.sls

[root@salt-master haproxy]# cat install.sls
haproxy-install:
pkg.installed:
- name: haproxy

3)service.sls

[root@salt-master haproxy]# cat service.sls
#引入haproxy安装的sls
include:
- modules.haproxy.install

#配置文件
haproxy-config:
file.managed:
- name: /etc/haproxy/haproxy.cfg
- source: salt://modules/haproxy/files/haproxy.cfg
- user: root
- group: root
- mode: 644
- require:
- pkg: haproxy-install

#启动haproxy
haproxy-service:
service.running:
- name: haproxy
- enable: True
- require:
- pkg: haproxy-install
- file: haproxy-config
- watch:
- file: haproxy-config

keepalived

1)配置文件准备

[root@salt-master ~]# cd /srv/salt/prod/modules/keepalived/
[root@salt-master keepalived]# tree
.
├── files
│ └── keepalived.conf
├── install.sls
└── service.sls
directory, 3 files

2)install.sls

[root@salt-master keepalived]# cat install.sls
keepalived-install:
pkg.installed:
- name: keepalived

3)service.sls

[root@salt-master keepalived]# cat service.sls
#引入keepalived安装的sls
include:
- modules.keepalived.install

#keepalived配置文件
keepalived-config:
file.managed:
- name: /etc/keepalived/keepalived.conf
- source: salt://modules/keepalived/files/keepalived.conf
- user: root
- group: root
- mode: 644
- require:
- pkg: keepalived-install
- template: jinja
- defaults:
{% if grains['fqdn'] == "salt-minion01" %}
ROUTER_ID: saltstack01
STATE: MASTER
PRIORITY: 150
{% elif grains['fqdn'] == "salt-minion02" %}
ROUTER_ID: saltstack02
STATE: BACKUP
PRIORITY: 100
{% endif %}

#启动keepalived
keepalived-service:
service.running:
- name: keepalived
- enable: True
- require:
- pkg: keepalived-install
- file: keepalived-config
- watch:
- file: keepalived-config

整体部署

1)top file 编写

[root@salt-master ~]# cat /srv/salt/base/top.sls
prod:
"salt-minion0[3-4]":
- modules.lnmp.www

"salt-minion0[1-2]":
- modules.haproxy.service
- modules.keepalived.service

2)高级状态执行

[root@salt-master ~]# salt '*' state.highstate

3)测试

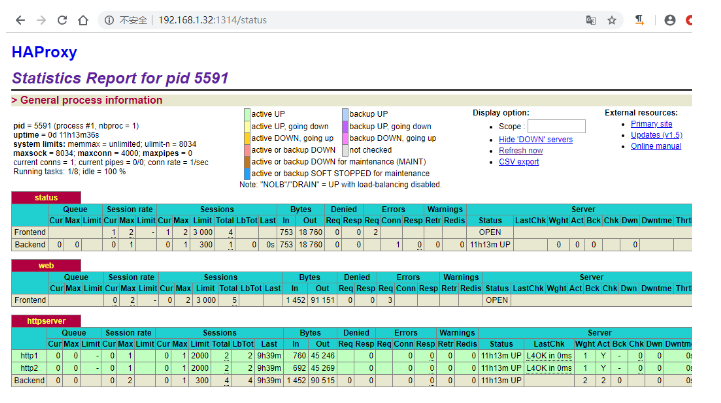

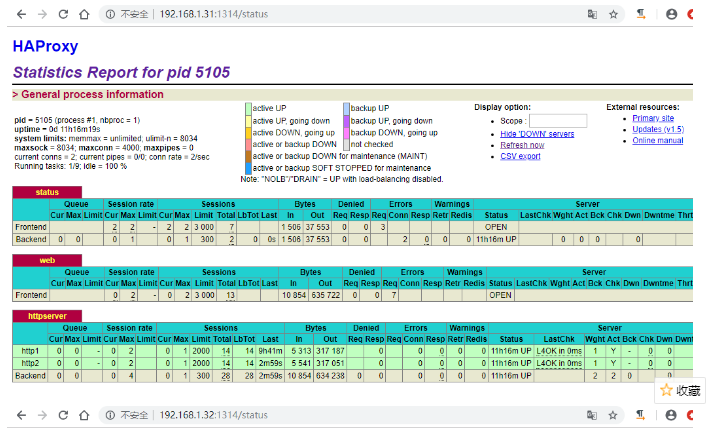

访问192.168.1.31和192.168.1.32的状态页

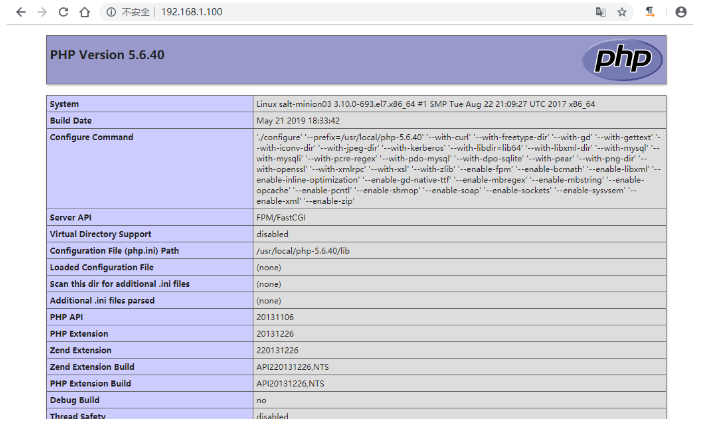

访问VIP192.168.1.100

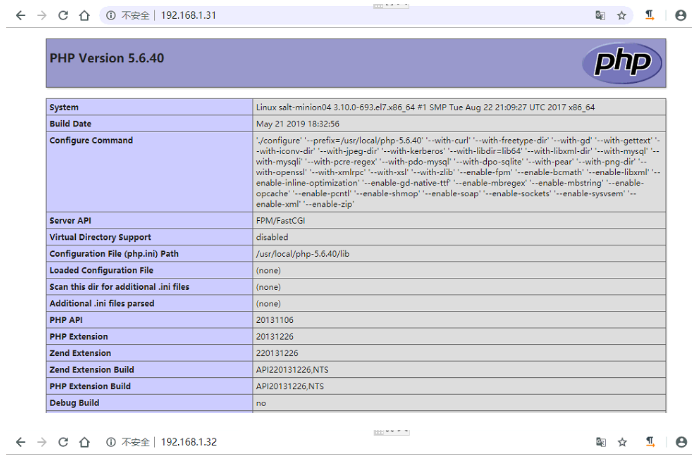

通过上面测试可看到可以成功访问lnmp站点,并且haproxy也ok。访问所有四台服务器都可以得到phpinfo页面,而在生产环境中,我们只是对外提供vip即可。

项目总结

1)整体环境查看

[root@salt-master ~]# tree /srv/salt/prod/modules/
/srv/salt/prod/modules/
├── haproxy
│ ├── files
│ │ └── haproxy.cfg
│ ├── install.sls
│ └── service.sls
├── keepalived
│ ├── files
│ │ └── keepalived.conf
│ ├── install.sls
│ └── service.sls
├── lnmp
│ ├── files
│ │ ├── index.php
│ │ └── www.conf
│ └── www.sls
├── mysql
│ ├── files
│ │ └── my.cnf
│ ├── install.sls
│ └── service.sls
├── nginx
│ ├── files
│ │ ├── nginx-1.12.2.tar.gz
│ │ ├── nginx-1.16.0.tar.gz
│ │ ├── nginx.conf.template
│ │ └── nginx.service.template
│ ├── install.sls
│ └── service.sls
├── php
│ ├── files
│ │ ├── php-5.6.40.tar.gz
│ │ ├── php-fpm.conf.template
│ │ ├── php-fpm.service.template
│ │ ├── php-fpm.template
│ │ └── php.ini.template
│ ├── install.sls
│ └── service.sls
├── pkg.sls
└── user
└── www.sls
directories, 27 files

2)如果需要在某台服务器上面单独部署某一部分,参考以下写法:

[root@salt-master ~]# cat /srv/salt/base/top.sls
#部署lnmp及haproxy+keepalived
prod:
"salt-minion0[3-4]":
- modules.lnmp.www

"salt-minion0[1-2]":
- modules.haproxy.service
- modules.keepalived.service

#单实例操作说明:
prod:
"salt-minion04":
- modules.nginx.service #单独安装nginx时
- modules.mysql.service #单独安装mysql时
- modules.php.service #单独安装php时
- modules.keepalived.service #单独安装keepalived时
- modules.haproxy.service #单独安装haproxy时

"salt-minion03":
- modules.lnmp.www #单独部署lnmp环境时



52 次浏览  评价: 差  订阅 捐助
相关文章

DevOps转型融入到企业文化
DevOps 能力模型、演进及案例剖析
基于 DevOps 理念的私有 PaaS 平台实践
微软开发团队的DevOps实践启示
相关文档

DevOps驱动应用运维变革与创新
运维管理规划
如何实现企业应用部署自动化
运维自动化实践之路
相关课程

自动化运维工具(基于DevOps)
互联网运维与DevOps
MySQL性能优化及运维培训
IT系统运维管理
