如何使用Amazon S3和CloudFront搭建CDN(英文)


2010-03-11来源:Digital Inspiration



Amazon S3 的作用是用来存储你的文件等内容,而CloudFront则将S3中的文件拷贝到世界各地的Amazon缓存服务器中,以使用户访问他们的速度变快。Amazon在美国,欧洲和亚洲的大城市都有服务器,所以从中国访问上面的资源将直接转到亚洲的服务器上。通常把网站中的图片,css, script脚本,Flash等等放到CDN上,这样可以使用户的响应时间大大降低,有报告说可降低80-90%。除了S3需要付费外,CloudFront也需要付费。

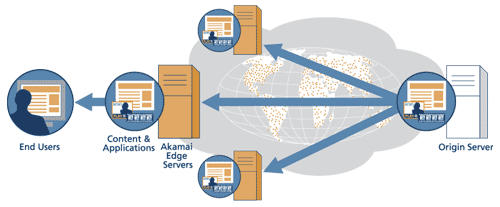

High traffic websites like CNN, Yahoo!, Adobe, Rediff, etc. use a Content Delivery Network (like Akamai) so end users have to spend less time waiting for the web page to load on their screens.

cdn-akamai

Why You Need a Content Delivery Network?

Let’s take a real example: This website is hosted on a web server that’s located in some part of America. Now if we have a visitor from Singapore, the page loading time for him will be relatively high because of the geographic distance between Singapore and America. Had there been a mirror server in either India or Australia, the page would load much faster for that visitor from Singapore.

Now a content delivery network has servers across the world and they automatically determine the fastest (or the shortest) route between the server hosting the site and the end-user. So your page will be served from the server in Australia to a visitor in Singapore and from America for a visitor in UK. Of course there are other advantages but this example should give you a good idea of why we need a Content Delivery Network.

I am not as big as CNN. Can I still afford a Content Delivery Network

Absolutely. If you are using Amazon S3 for hosting images, you can consider using their their new CloudFront service for content delivery. Like Amazon S3, CloudFront is inexpensive (you pay for what you use) and gives all the benefits of a typical CDN service.

amazon-servers
Location of Amazon Data Centers World-wide. Credit Werner Vogels

When you upload files to Amazon S3 and configure them with CloudFront, a copy of S3 files will be cached in various Amazon servers that are spread across important cities in US, Europe and Asia. So a visitor from India will be served content by the server located in Asia and so on – see illustration above for location of all Amazon servers.

How to Setup Amazon S3 with CloudFront as your Content Delivery Network

This is a simple step-by-step tutorial on how to serve your images and other media faster to end-users using the Amazon S3 + CloudFront Content Delivery Network:

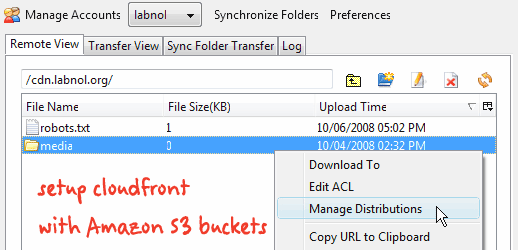

Step 1: Get the S3 Fox add-on for Firefox and log-in to your Amazon S3 account. Now right-click your S3 bucket and select "Manage Distributions."

cloudfront

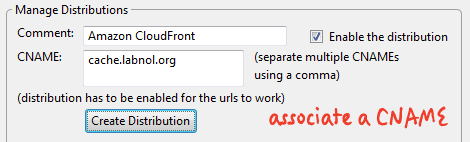

Step 2: Next we’ll associate a CNAME (some easy to remember sub-domain name) with our S3 bucket so it become easy to link to the files from our web pages. In this example, I use the web address "cache.labnol.org" and then click Create Distribution.

CNAME-amazon

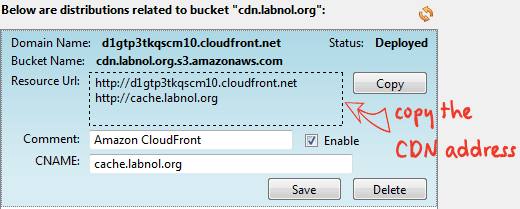

Step 3: The status will change from "In Progress" to "Deployed". Now copy the resource URL to the clipboard which is of the format xyz.cloudfront.net

cdn-web-address

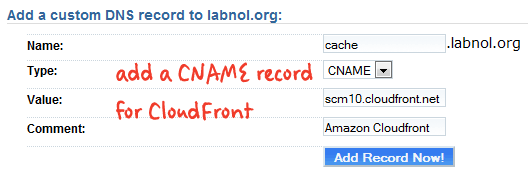

Step 4. Log in to your account on your web hosting service’s website, and go to the DNS management page. Create a new CNAME record as shown in the screenshot. The CNAME name is the same sub-domain you created above while the CNAME value is your cloudfront.net URL generated by Amazon.

cname-cloudfront

It may take a while (5 minutes?) for the domain change to propagate across different DNS servers. You may use online nslookup to confirm that the changes have been correctly propagated.

And you are done. Simply replace the image URLs in your web templates with the new sub-domain (in our case, cache.labnol.org) and your done.

Should You Use Amazon S3 or Amazon CloudFront

Amazon S3 is the place where you store content (your files) while CloudFront ensures that you files stored in S3 buckets get served faster.

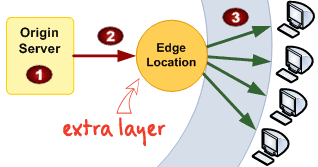

amazon-cloudfront-pricing CloudFront does this by copying files from S3 buckets to different edge locations that in turn serve content to end-users.

Edge Locations are spread across the world and content is always served from an Amazon server that is closest to the user’s location thus improving the page loading time as it means fewer network hops.

Statistics from YDN says that 80-90% of the end-user response time is spent downloading all the components in the page: images, stylesheets, scripts, Flash, etc. We can therefore disperse all this static content using a content delivery network an improve the speed of our web site..

In the case of S3, you were only paying for data served from S3 to the end user but in case of CloudFront, you also need to pay for data transferred from S3 to these edge locations.
