本文主要介绍了边缘检测的各类边缘算子，以及对原图及它旋转变换后的图像进行角点检测
，希望对您的学习有所帮助。
本文来自于CSDN，由火龙果软件Alice编辑、推荐。 |
|
边缘检测：
1.Roberts算子
2.Prewitt算子
3.Sobel算子
4.Laplacian算子
5.Canny函数
代码如下：
import cv2
import numpy as np
import matplotlib.pyplot as plt
image = cv2.imread('lenna.jpg', cv2.IMREAD_GRAYSCALE)
cv2.imshow('origin', image)
h, w = image.shape # 获取图像的高度和宽度
# Roberts算子
kernelx = np.array([[-1, 0], [0, 1]], dtype=int)
kernely = np.array([[0, -1], [1, 0]], dtype=int)
x = cv2.filter2D(image, cv2.CV_16S, kernelx)
y = cv2.filter2D(image, cv2.CV_16S, kernely)
absX = cv2.convertScaleAbs(x)
absY = cv2.convertScaleAbs(y)
Roberts = cv2.addWeighted(absX, 0.5, absY, 0.5,
0)
cv2.imshow('Roberts', Roberts )
# Prewitt算子
kernelx = np.array([[1, 1, 1], [0, 0, 0], [-1,
-1, -1]], dtype=int)
kernely = np.array([[-1, 0, 1], [-1, 0, 1],
[-1, 0, 1]], dtype=int)
x = cv2.filter2D(image, cv2.CV_16S, kernelx)
y = cv2.filter2D(image, cv2.CV_16S, kernely)
absX = cv2.convertScaleAbs(x)
absY = cv2.convertScaleAbs(y)
Prewitt = cv2.addWeighted(absX, 0.5, absY, 0.5,
0)
cv2.imshow('Prewitt', Prewitt)
# Sobel 滤波器 进行边的检测
sobel_horizontal = cv2.Sobel(image, cv2.CV_64F,
1, 0, ksize=5) # 水平方向
sobel_vetical = cv2.Sobel(image, cv2.CV_64F,
0, 1, ksize=5) # 垂直方向
cv2.imshow('sobel_H', sobel_horizontal) # 水平方向
cv2.imshow('sobel_V', sobel_vetical) # 垂直方向
# 拉普拉斯算子 进行边的检测 64F代表每一个像素点元素占64位浮点数
laplacian = cv2.Laplacian(image, cv2.CV_64F,
ksize=5)
cv2.imshow('laplacian', laplacian)
# # Canny边检测器
canny = cv2.Canny(image, 50, 240)
cv2.imshow('Canny', canny)
cv2.waitKey(0)
cv2.destroyAllWindows()
|
结果图如下

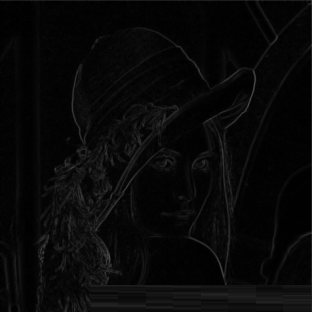

Roberts

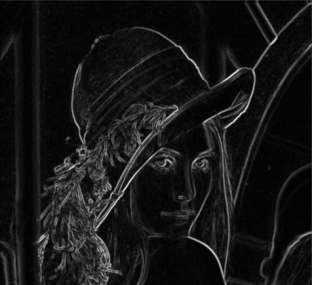

prewitt
Laplacian
canny
Sobel_v
sobel_h
设计检测具有特定角度边缘的算子；
检测具有45o角的边缘的3×3算子；
检测具有45o角的边缘的5×5算子；
这里我使用的是prewitt模板
3x3代码如下：
import cv2
import numpy as np
import matplotlib.pyplot as plt
image = cv2.imread('lenna.jpg', cv2.IMREAD_GRAYSCALE)
cv2.imshow('origin', image)
# Roberts算子
kernelx = np.array([[1, 1, 0], [1, 0, -1], [0,
-1, -1]], dtype=int)
kernely = np.array([[1, 1, 0], [1, 0, -1], [0,
-1, -1]], dtype=int)
x = cv2.filter2D(image, cv2.CV_16S, kernelx)
y = cv2.filter2D(image, cv2.CV_16S, kernely)
absX = cv2.convertScaleAbs(x)
absY = cv2.convertScaleAbs(y)
Prewitt = cv2.addWeighted(absX, 0.5, absY, 0.5,
0)
cv2.imshow('Prewitt', Prewitt)
cv2.waitKey(0)
cv2.destroyAllWindows()
|
5x5代码如下
import cv2
import numpy as np
import matplotlib.pyplot as plt
image = cv2.imread('lenna.jpg', cv2.IMREAD_GRAYSCALE)
cv2.imshow('origin', image)
# Roberts算子
kernelx = np.array([[1, 1, 1, 1, 0], [1, 1,
1, 0, -1], [1,1,0, -1, -1],[1,0,-1,-1,-1],[0,-1,-1,-1,-1]],
dtype=int)
kernely = np.array([[1, 1, 1, 1, 0], [1, 1,
1, 0, -1], [1,1,0, -1, -1],[1,0,-1,-1,-1],[0,-1,-1,-1,-1]],
dtype=int)
x = cv2.filter2D(image, cv2.CV_16S, kernelx)
y = cv2.filter2D(image, cv2.CV_16S, kernely)
absX = cv2.convertScaleAbs(x)
absY = cv2.convertScaleAbs(y)
Prewitt = cv2.addWeighted(absX, 0.5, absY, 0.5,
0)
cv2.imshow('Prewitt', Prewitt)
cv2.waitKey(0)
cv2.destroyAllWindows()
|
角点检测
import cv2 as
cv
import numpy as np
from matplotlib import pyplot as plt
def cornerHarri(imgae):
gray = cv.cvtColor(imgae, cv.COLOR_BGR2GRAY)
gray = np.float32(gray)
dst = cv.cornerHarris(gray, 2, 3, 0.04)
dst = cv.dilate(dst, None)
imgae[dst>0.01*dst.max()]=[0,0,255]
src = cv.imread("whiteandblack.jpg")
rows, cols, channel = src.shape
#绕图像的中心旋转
#参数：旋转中心 旋转度数 scale
M = cv.getRotationMatrix2D((cols/2, rows/2),
30, 1)
#参数：原始图像 旋转参数 元素图像宽高
rotated = cv.warpAffine(src, M, (cols, rows))
cv.imshow("contours", src)
cornerHarri(src)
cv.imshow("corn",src)
cornerHarri(rotated)
cv.imshow("corn1",rotated)
cv.waitKey(0)
cv.destroyAllWindows()
|
这里是对原图及它旋转变换后的图像进行角点检测
图像如下
原图：

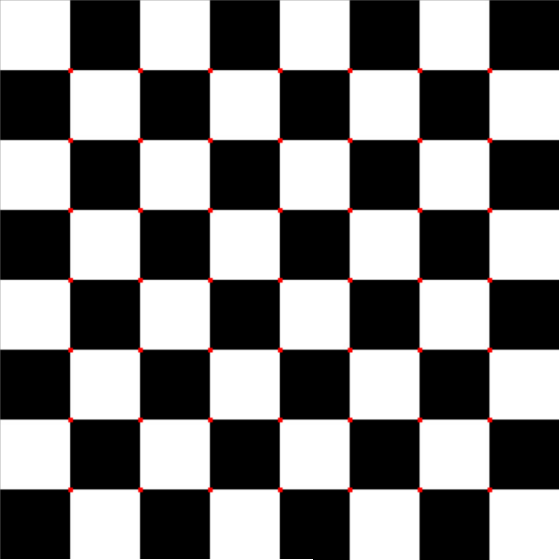

角点检测后：
旋转后的角点检测：
使用cv2.goodFeaturesToTrack()检测角点
道理一样下面给出代码（结果图就不放了）：
import numpy
as np
import cv2
from matplotlib import pyplot as plt
def track(imgae):
gray = cv2.cvtColor(rotated,cv2.COLOR_BGR2GRAY)
corners = cv2.goodFeaturesToTrack(gray,25,0.01,10)
corners = np.int0(corners)
for i in corners:
x,y = i.ravel()
cv2.circle(rotated,(x,y),3,255,-1)
img = cv2.imread('whiteandblack.jpg')
rows, cols, channel = img.shape
#绕图像的中心旋转
#参数：旋转中心 旋转度数 scale
M = cv2.getRotationMatrix2D((cols/2, rows/2),
30, 1)
#参数：原始图像 旋转参数 元素图像宽高
rotated = cv2.warpAffine(img, M, (cols, rows))
cv2.imshow("contours", img)
track(img)
cv2.imshow("corn",img)
track(rotated)
cv2.imshow("corn1",rotated)
cv.waitKey(0)
cv.destroyAllWindows()
|
|
