Hadoop分布式文件系统的构架和设计

2009-10-23 翻译：fly_hyp 来源：fly_hyp的博客

翻译的有点业余，现在大约翻译了70%，今天是没有时间了，以后会再接再厉。

The Hadoop Distributed File System: Architecture and Design

Hadoop 分布式文件系统: 构架和设

Introduction
介绍
Assumptions and Goals
假设和目标
- Hardware Failure
  硬件失效
- Streaming Data Access
  流模式数据访问
- Large Data Sets
  大数据集支持
- Simple Coherency Model
- “Moving Computation is Cheaper than Moving Data”
  “移动计算方法比移动数据廉价”
- Portability Across Heterogeneous Hardware and Software Platforms
  硬件和软件平台的可移植性
Namenode and Datanodes
名字节点和数据节点
The File System Namespace
文件系统名字空间
Data Replication 数据副本
- Replica Placement: The First Baby Steps
  副本的存放: 婴儿的第一步
- Replica Selection
  副本的选择
- SafeMode
  安全模式
The Persistence of File System Metadata
文件系统元数据的持久化
The Communication Protocols
通讯协议
Robustness
健壮性
- Data Disk Failure, Heartbeats and Re-Replication
  磁盘故障、心跳、再复制
- Cluster Rebalancing
  群集的负载均衡
- Data Integrity
  数据整合
- Metadata Disk Failure
  元数据磁盘故障
- Snapshots
  快照
Data Organization
数据管理
- Data Blocks
  数据块
- Staging
  分段运输
- Replication Pipelining
  管道式的复制
Accessibility
访问方式
- DFSShell
  命令行接口
- DFSAdmin
  管理工具
- Browser Interface
  浏览器借口
Space Reclamation
空间的回收
- File Deletes and Undeletes
  文件的删除和恢复
- Decrease Replication Factor
  减少副本参数设置
References
参考

Introduction

介绍

The Hadoop Distributed File System (HDFS ) is a distributed file system designed to run on commodity hardware. It has many similarities with existing distributed file systems. However, the differences from other distributed file systems are significant. HDFS is highly fault-tolerant and is designed to be deployed on low-cost hardware. HDFS provides high throughput access to application data and is suitable for applications that have large data sets. HDFS relaxes a few POSIX requirements to enable streaming access to file system data. HDFS was originally built as infrastructure for the Apache Nutch web search engine project. HDFS is part of the Apache Hadoop Core project. The project URL is http://hadoop.apache.org/core/ .

Hadoop分布式文件系统(HDFS ) 是一种设计运行在一般硬件条件（非服务器）下的分布式文件系统. 他和现有的其他分布式文件系统有很多相似. 但，和其他分布式文件系统的不同之处才是最重要的. HDFS 设计为运行在低成本的硬件上，且提供高可靠性的服务器. HDFS设计满足大数据量，大吞吐量的情况。HDFS提供POSIX标准的按流方式访问数据的方法。HDFS原先是Apache Nutch 网站搜索引擎项目的一个基础部分. HDFS 是Hadoop Corex项目的一部分. 项目网址：http://hadoop.apache.org/core/ .

Assumptions and Goals

假定和目标

Hardware Failure

硬件失效

Hardware failure is the norm rather than the exception. An HDFS instance may consist of hundreds or thousands of server machines, each storing part of the file system’s data. The fact that there are a huge number of components and that each component has a non-trivial probability of failure means that some component of HDFS is always non-functional. Therefore, detection of faults and quick, automatic recovery from them is a core architectural goal of HDFS.

硬件失效比一般一场更为普遍. 一个HDFS运行实例可有包含几百或几千台服务器, 每一个存储一部分文件系统的数据. 因为由大量的服务器组成，任何一个服务器的小概率的失效意味着整个文件系统的不能工作。因此检测错误，并且快速自动的恢复是HDFS的一个核心构架目标.

Streaming Data Access

流方式的数据访问

Applications that run on HDFS need streaming access to their data sets. They are not general purpose applications that typically run on general purpose file systems. HDFS is designed more for batch processing rather than interactive use by users. The emphasis is on high throughput of data access rather than low latency of data access. POSIX imposes many hard requirements that are not needed for applications that are targeted for HDFS. POSIX semantics in a few key areas has been traded to increase data throughput rates.

应用程序需要通过流方式访问数据，他们不是运行在一般文件系统上的应用. HDFS设计为批处理模式，而不是交互模式. 强调高吞吐量而不是低延时。POSIX的一些语义，被认为是提高吞吐量的方式，对运行在HDFS上的应用是不需要。

Large Data Sets

大的数据集支持

Applications that run on HDFS have large data sets. A typical file in HDFS is gigabytes to terabytes in size. Thus, HDFS is tuned to support large files. It should provide high aggregate data bandwidth and scale to hundreds of nodes in a single cluster. It should support tens of millions of files in a single instance.

运行在HDFS上的应用程序有很大的数据量. 典型的文件大小是G bytes 到 T bytes. 因此，HDFS需要调整到支持很大的文件，需要支持很大的数据带宽，以及在一个服务器群集中可扩展到几百个节点,支持数千万个文件。

Simple Coherency Model

简单的一致性模型

HDFS applications need a write-once-read-many access model for files. A file once created, written, and closed need not be changed. This assumption simplifies data coherency issues and enables high throughput data access. A MapReduce application or a web crawler application fits perfectly with this model. There is a plan to support appending-writes to files in the future.

HDFS应用程序写一次读多次的文件访问模型. 文件一点别建立、写入、关闭，将不能被改变了. 这个假定简化了文件一致性的术语，能够提高数据访问的吞吐量. 一个MapReduce应用程序或网络爬虫应用程序非常的适合这种模型. 我们有个一个计划，在未来添加支持追加写入的功能.

“Moving Computation is Cheaper than Moving Data”

“移动计算方法比移动数据便宜”

A computation requested by an application is much more efficient if it is executed near the data it operates on. This is especially true when the size of the data set is huge. This minimizes network congestion and increases the overall throughput of the system. The assumption is that it is often better to migrate the computation closer to where the data is located rather than moving the data to where the application is running. HDFS provides interfaces for applications to move themselves closer to where the data is located.

应用的一个计算请求假如在离数据更近的地方计算将会更有效率. 这样在数据十分巨大的时候更加明显. 这样可以最小化网络阻塞和增加整个系统的吞吐量. 有个设想是，经常移动程序到他计算的数据附近，而不是经常移动数据到他相关的应用程序附近. HDFS为应用提供一个接口，方面他们（程序）移动自己到离他们数据更近的地方.

Portability Across Heterogeneous Hardware and Software Platforms

跨不同硬件和软件平台的和移植性

HDFS has been designed to be easily portable from one platform to another. This facilitates widespread adoption of HDFS as a platform of choice for a large set of applications.

HDFS被设计为可以方便的从一个平台移植到另外一个平台. 这样有助于HDFS被大量的应用采纳.

Namenode and Datanodes

名字节点和数据节点

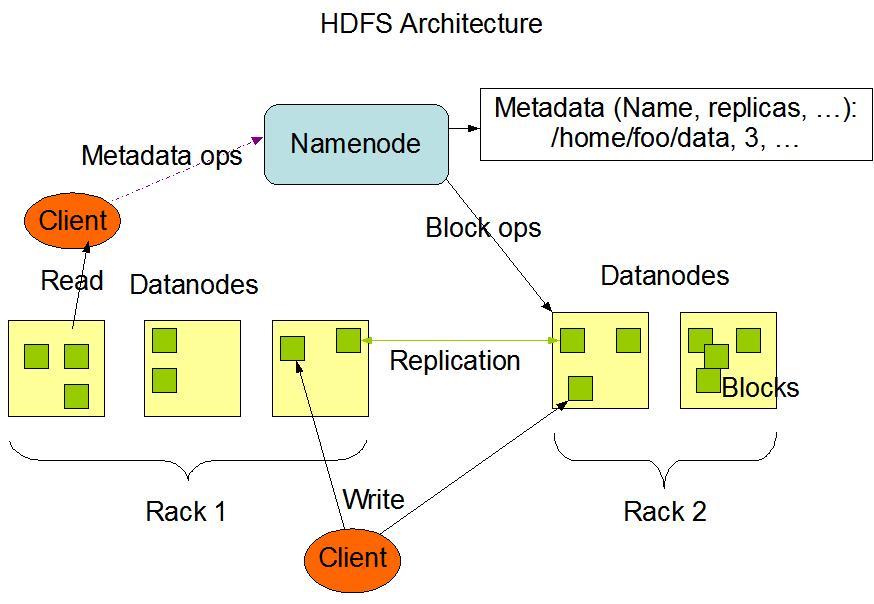

HDFS has a master/slave architecture. An HDFS cluster consists of a single Namenode , a master server that manages the file system namespace and regulates access to files by clients. In addition, there are a number of Datanodes , usually one per node in the cluster, which manage storage attached to the nodes that they run on. HDFS exposes a file system namespace and allows user data to be stored in files. Internally, a file is split into one or more blocks and these blocks are stored in a set of Datanodes. The Namenode executes file system namespace operations like opening, closing, and renaming files and directories. It also determines the mapping of blocks to Datanodes. The Datanodes are responsible for serving read and write requests from the file system’s clients. The Datanodes also perform block creation, deletion, and replication upon instruction from the Namenode.

HDFS是一个主从构架. 一个HDFS群集有单个名字节点 组成, 一个主服务器管理文件系统的名字空间和调节客户端对文件的访问. 另外, 存在一些数据节点 , 一般来说每一个在群集中的节点管理它运行所在机器的存储（磁盘）. HDFS 暴露一个文件系统命名空间以及允许用户数据被存在文件中. 在内部, 一个文件被分为一个或多个快，这些块被存在一系列的数据节点上. 名字节点管理文件系统的操作，例如，打开文件、关闭文件、文件改名、目录维护。它也决定数据块到数据节点的映射. 数据节点的责任是满足客户程序的读写请求。数据节点执行来自于名字节点的建立、删除、复制指令.

The Namenode and Datanode are pieces of software designed to run on commodity machines. These machines typically run a GNU/Linux operating system (OS ). HDFS is built using the Java language; any machine that supports Java can run the Namenode or the Datanode software. Usage of the highly portable Java language means that HDFS can be deployed on a wide range of machines. A typical deployment has a dedicated machine that runs only the Namenode software. Each of the other machines in the cluster runs one instance of the Datanode software. The architecture does not preclude running multiple Datanodes on the same machine but in a real deployment that is rarely the case.

The existence of a single Namenode in a cluster greatly simplifies the architecture of the system. The Namenode is the arbitrator and repository for all HDFS metadata. The system is designed in such a way that user data never flows through the Namenode.

The File System Namespace

文件系统名字空间

HDFS supports a traditional hierarchical file organization. A user or an application can create directories and store files inside these directories. The file system namespace hierarchy is similar to most other existing file systems; one can create and remove files, move a file from one directory to another, or rename a file. HDFS does not yet implement user quotas or access permissions. HDFS does not support hard links or soft links. However, the HDFS architecture does not preclude implementing these features.

The Namenode maintains the file system namespace. Any change to the file system namespace or its properties is recorded by the Namenode. An application can specify the number of replicas of a file that should be maintained by HDFS. The number of copies of a file is called the replication factor of that file. This information is stored by the Namenode.

Data Replication

数据复制

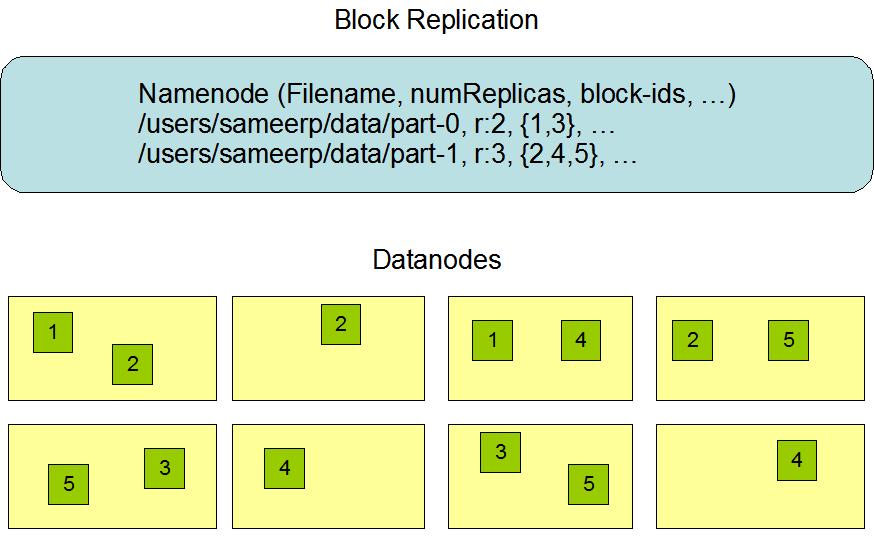

HDFS is designed to reliably store very large files across machines in a large cluster. It stores each file as a sequence of blocks; all blocks in a file except the last block are the same size. The blocks of a file are replicated for fault tolerance. The block size and replication factor are configurable per file. An application can specify the number of replicas of a file. The replication factor can be specified at file creation time and can be changed later. Files in HDFS are write-once and have strictly one writer at any time.

The Namenode makes all decisions regarding replication of blocks. It periodically receives a Heartbeat and a Blockreport from each of the Datanodes in the cluster. Receipt of a Heartbeat implies that the Datanode is functioning properly. A Blockreport contains a list of all blocks on a Datanode.

Replica Placement: The First Baby Steps

数据副本的存放: 婴儿的第一步

The placement of replicas is critical to HDFS reliability and performance. Optimizing replica placement distinguishes HDFS from most other distributed file systems. This is a feature that needs lots of tuning and experience. The purpose of a rack-aware replica placement policy is to improve data reliability, availability, and network bandwidth utilization. The current implementation for the replica placement policy is a first effort in this direction. The short-term goals of implementing this policy are to validate it on production systems, learn more about its behavior, and build a foundation to test and research more sophisticated policies.

Large HDFS instances run on a cluster of computers that commonly spread across many racks. Communication between two nodes in different racks has to go through switches. In most cases, network bandwidth between machines in the same rack is greater than network bandwidth between machines in different racks.

The NameNode determines the rack id each DataNode belongs to via the process outlined in Rack Awareness . A simple but non-optimal policy is to place replicas on unique racks. This prevents losing data when an entire rack fails and allows use of bandwidth from multiple racks when reading data. This policy evenly distributes replicas in the cluster which makes it easy to balance load on component failure. However, this policy increases the cost of writes because a write needs to transfer blocks to multiple racks.

For the common case, when the replication factor is three, HDFS’s placement policy is to put one replica on one node in the local rack, another on a different node in the local rack, and the last on a different node in a different rack. This policy cuts the inter-rack write traffic which generally improves write performance. The chance of rack failure is far less than that of node failure; this policy does not impact data reliability and availability guarantees. However, it does reduce the aggregate network bandwidth used when reading data since a block is placed in only two unique racks rather than three. With this policy, the replicas of a file do not evenly distribute across the racks. One third of replicas are on one node, two thirds of replicas are on one rack, and the other third are evenly distributed across the remaining racks. This policy improves write performance without compromising data reliability or read performance.

The current, default replica placement policy described here is a work in progress.

Replica Selection

复制选择

To minimize global bandwidth consumption and read latency, HDFS tries to satisfy a read request from a replica that is closest to the reader. If there exists a replica on the same rack as the reader node, then that replica is preferred to satisfy the read request. If angg/ HDFS cluster spans multiple data centers, then a replica that is resident in the local data center is preferred over any remote replica.

为了减少全局带宽和读延时, HDFS尝试把最近的一个副本给读的应用. 假如和读的应用在同一个机架存在副本, 则这个副本优先被读取. 假如HDFS群集存在多个数据中心, 则本地数据中心优先被读取.

SafeMode

安全模式

On startup, the Namenode enters a special state called Safemode . Replication of data blocks does not occur when the Namenode is in the Safemode state. The Namenode receives Heartbeat and Blockreport messages from the Datanodes. A Blockreport contains the list of data blocks that a Datanode is hosting. Each block has a specified minimum number of replicas. A block is considered safely replicated when the minimum number of replicas of that data block has checked in with the Namenode. After a configurable percentage of safely replicated data blocks checks in with the Namenode (plus an additional 30 seconds), the Namenode exits the Safemode state. It then determines the list of data blocks (if any) that still have fewer than the specified number of replicas. The Namenode then replicates these blocks to other Datanodes.

The Persistence of File System Metadata

The HDFS namespace is stored by the Namenode. The Namenode uses a transaction log called the EditLog to persistently record every change that occurs to file system metadata . For example, creating a new file in HDFS causes the Namenode to insert a record into the EditLog indicating this. Similarly, changing the replication factor of a file causes a new record to be inserted into the EditLog. The Namenode uses a file in its local host OS file system to store the EditLog. The entire file system namespace, including the mapping of blocks to files and file system properties, is stored in a file called the FsImage . The FsImage is stored as a file in the Namenode’s local file system too.

The Namenode keeps an image of the entire file system namespace and file Blockmap in memory. This key metadata item is designed to be compact, such that a Namenode with 4 GB of RAM is plenty to support a huge number of files and directories. When the Namenode starts up, it reads the FsImage and EditLog from disk, applies all the transactions from the EditLog to the in-memory representation of the FsImage, and flushes out this new version into a new FsImage on disk. It can then truncate the old EditLog because its transactions have been applied to the persistent FsImage. This process is called a checkpoint . In the current implementation, a checkpoint only occurs when the Namenode starts up. Work is in progress to support periodic checkpointing in the near future.

The Datanode stores HDFS data in files in its local file system. The Datanode has no knowledge about HDFS files. It stores each block of HDFS data in a separate file in its local file system. The Datanode does not create all files in the same directory. Instead, it uses a heuristic to determine the optimal number of files per directory and creates subdirectories appropriately. It is not optimal to create all local files in the same directory because the local file system might not be able to efficiently support a huge number of files in a single directory. When a Datanode starts up, it scans through its local file system, generates a list of all HDFS data blocks that correspond to each of these local files and sends this report to the Namenode: this is the Blockreport.

The Communication Protocols

通讯协议

All HDFS communication protocols are layered on top of the TCP/IP protocol. A client establishes a connection to a configurable TCP port on the Namenode machine. It talks the ClientProtocol with the Namenode. The Datanodes talk to the Namenode using the DatanodeProtocol . A Remote Procedure Call (RPC ) abstraction wraps both the ClientProtocol and the DatanodeProtocol. By design, the Namenode never initiates any RPCs. Instead, it only responds to RPC requests issued by Datanodes or clients.

Robustness

健壮性

The primary objective of HDFS is to store data reliably even in the presence of failures. The three common types of failures are Namenode failures, Datanode failures and network partitions.

Data Disk Failure, Heartbeats and Re-Replication

磁盘错误, 心跳 and 再复制

Each Datanode sends a Heartbeat message to the Namenode periodically. A network partition can cause a subset of Datanodes to lose connectivity with the Namenode. The Namenode detects this condition by the absence of a Heartbeat message. The Namenode marks Datanodes without recent Heartbeats as dead and does not forward any new IO requests to them. Any data that was registered to a dead Datanode is not available to HDFS any more. Datanode death may cause the replication factor of some blocks to fall below their specified value. The Namenode constantly tracks which blocks need to be replicated and initiates replication whenever necessary. The necessity for re-replication may arise due to many reasons: a Datanode may become unavailable, a replica may become corrupted, a hard disk on a Datanode may fail, or the replication factor of a file may be increased.

Cluster Rebalancing

全局负载平衡

The HDFS architecture is compatible with data rebalancing schemes . A scheme might automatically move data from one Datanode to another if the free space on a Datanode falls below a certain threshold. In the event of a sudden high demand for a particular file, a scheme might dynamically create additional replicas and rebalance other data in the cluster. These types of data rebalancing schemes are not yet implemented.

Data Integrity

数据完整性

It is possible that a block of data fetched from a Datanode arrives corrupted. This corruption can occur because of faults in a storage device, network faults, or buggy software. The HDFS client software implements checksum checking on the contents of HDFS files. When a client creates an HDFS file, it computes a checksum of each block of the file and stores these checksums in a separate hidden file in the same HDFS namespace. When a client retrieves file contents it verifies that the data it received from each Datanode matches the checksum stored in the associated checksum file. If not, then the client can opt to retrieve that block from another Datanode that has a replica of that block.

Metadata Disk Failure

元数据磁盘故障

The FsImage and the EditLog are central data structures of HDFS. A corruption of these files can cause the HDFS instance to be non-functional. For this reason, the Namenode can be configured to support maintaining multiple copies of the FsImage and EditLog. Any update to either the FsImage or EditLog causes each of the FsImages and EditLogs to get updated synchronously. This synchronous updating of multiple copies of the FsImage and EditLog may degrade the rate of namespace transactions per second that a Namenode can support. However, this degradation is acceptable because even though HDFS applications are very data intensive in nature, they are not metadata intensive. When a Namenode restarts, it selects the latest consistent FsImage and EditLog to use.

FsImage和EditLog是HDFS中心的数据结构. 这些文件中一个损毁阿会引起HDFS实例的不能正常工作. 因为这个原因, 名字节点能够被设置为支持维护多个FsImage和EditLog的副本. 任何一个FsImage或EditLog更新了，引起其他的FsImages和EditLogs都同步更新了. 这个同步更新FsImage、EditLog多个copy的机制，会减少名字节点每秒处理事务的数量. 无论如何, 这个损失是可以被接受的，因为即使HDFS应用程序的运算速度是非常重要的，但也没有元数据重要. 当名字节点重起, 它选择最新，且数据一致的FsImage和EditLog被使用.

The Namenode machine is a single point of failure for an HDFS cluster. If the Namenode machine fails, manual intervention is necessary. Currently, automatic restart and failover of the Namenode software to another machine is not supported.

名字节点服务器是HDFS群集中的一个单点故障点. 假如名字节点失效了, 人工的操作是必须的. 在当前, 自动重起并且修复错误，自动将名字节点软件部署到另外一台机器还没有被支持。

Snapshots

数据快照

Snapshots support storing a copy of data at a particular instant of time. One usage of the snapshot feature may be to roll back a corrupted HDFS instance to a previously known good point in time. HDFS does not currently support snapshots but will in a future release.

快照支持存储一个分布式文件系统某个时间的一份copy数据。快照的用处是可以回滚HDFS实例到之前好的状态点。HDFS现在还不支持快照，但是以后版本打算支持.

Data Organization

数据组织

Data Blocks

数据块

HDFS is designed to support very large files. Applications that are compatible with HDFS are those that deal with large data sets. These applications write their data only once but they read it one or more times and require these reads to be satisfied at streaming speeds. HDFS supports write-once-read-many semantics on files. A typical block size used by HDFS is 64 MB. Thus, an HDFS file is chopped up into 64 MB chunks, and if possible, each chunk will reside on a different Datanode.

HDFS被设计为支持非常大的文件. 在HDFS运行的软件都是处理大数据集的. 这些应用程序一般写一次数据，但是可能需要顺畅的对那些数据读一次或多次. HDFS支持写一次读多次的文件语义. 一个典型的HDFS文件块大小是64MB. 应次, 一个HDFS文件被分割成64MB大小的数据块集合, 如果可能, 每一个块可以在不同的数据节点上。

Staging

分段运输

A client request to create a file does not reach the Namenode immediately. In fact, initially the HDFS client caches the file data into a temporary local file. Application writes are transparently redirected to this temporary local file. When the local file accumulates data worth over one HDFS block size, the client contacts the Namenode. The Namenode inserts the file name into the file system hierarchy and allocates a data block for it. The Namenode responds to the client request with the identity of the Datanode and the destination data block. Then the client flushes the block of data from the local temporary file to the specified Datanode. When a file is closed, the remaining un-flushed data in the temporary local file is transferred to the Datanode. The client then tells the Namenode that the file is closed. At this point, the Namenode commits the file creation operation into a persistent store. If the Namenode dies before the file is closed, the file is lost.

The above approach has been adopted after careful consideration of target applications that run on HDFS. These applications need streaming writes to files. If a client writes to a remote file directly without any client side buffering, the network speed and the congestion in the network impacts throughput considerably. This approach is not without precedent. Earlier distributed file systems, e.g. AFS , have used client side caching to improve performance. A POSIX requirement has been relaxed to achieve higher performance of data uploads.

Replication Pipelining

管道方式的复制操作

When a client is writing data to an HDFS file, its data is first written to a local file as explained in the previous section. Suppose the HDFS file has a replication factor of three. When the local file accumulates a full block of user data, the client retrieves a list of Datanodes from the Namenode. This list contains the Datanodes that will host a replica of that block. The client then flushes the data block to the first Datanode. The first Datanode starts receiving the data in small portions (4 KB), writes each portion to its local repository and transfers that portion to the second Datanode in the list. The second Datanode, in turn starts receiving each portion of the data block, writes that portion to its repository and then flushes that portion to the third Datanode. Finally, the third Datanode writes the data to its local repository. Thus, a Datanode can be receiving data from the previous one in the pipeline and at the same time forwarding data to the next one in the pipeline. Thus, the data is pipelined from one Datanode to the next.

当一个客户端写数据到HDFS文件时,数据前面一段先写入本地文件. 假设，HDFS文件的副本参数为3. 当本地文件累计到满一个数据块时,客户端从名字节点得到一个数据节点列表.这些数据节点将存放这个数据块的一个副本. 接着，客户端刷新数据到第一个数据节点. 第一个数据节点开始接收数据,一小块一小块接收（4K）, 将每一小块的数据写到本地存储，同时将这一小块数据传输到列表上的第二个数据节点上. 第二个数据节点, 继续接受数据写到本地存储，接着传输到第三个数据节点上。最后第三节点将数据写到它的本地存储上。就这样，一个数据节点能够从管道的前一个接收数据，同时又将数据传给管道中的下一个节点，就这样数据在管道中从一个数据节点传送到另一个数据节点。

Accessibility

访问方式

HDFS can be accessed from applications in many different ways. Natively, HDFS provides a Java API for applications to use. A C language wrapper for this Java API is also available. In addition, an HTTP browser can also be used to browse the files of an HDFS instance. Work is in progress to expose HDFS through the WebDAV protocol.

应用能够通过多总方式访问HDFS. 原生接口, HDFS提供Java 应用程序接口 . C语言包装的Java 应用程序接口. 另外, 浏览器能够HDFS上的文件. Work is in progress to expose HDFS through the WebDAV protocol.

DFSShell

分布式文件系统命令行接口

HDFS allows user data to be organized in the form of files and directories. It provides a commandline interface called DFSShell that lets a user interact with the data in HDFS. The syntax of this command set is similar to other shells (e.g. bash, csh) that users are already familiar with. Here are some sample action/command pairs:

HDFS允许用户数据被组织成文件和目录的形式. 提供的命令行形式的接口叫DFSShell ，是用户和HDFS中数据交互的一种接口. 语法有点像其他用户已经熟悉的命令行环境(例如 bash, csh). 这里提供一些功能和命令的例子:

Action 功能	Command 命令
Create a directory named /foodir	bin/hadoop dfs -mkdir /foodir
建立一个目录 /foodir	bin/hadoop dfs -mkdir /foodir
View the contents of a file named /foodir/myfile.txt	bin/hadoop dfs -cat /foodir/myfile.txt
查看/foodir/myfile.txt 文件的内容	bin/hadoop dfs -cat /foodir/myfile.txt

DFSShell is targeted for applications that need a scripting language to interact with the stored data.

DFSShell的目的是为了应用程序通过脚本访问HDFS中的数据.

DFSAdmin

管理工具

The DFSAdmin command set is used for administering an HDFS cluster. These are commands that are used only by an HDFS administrator. Here are some sample action/command pairs:

DFSAdmin 的一组命令是用于管理HDFS群集. 这些命令主要给HDFS管理员使用. 这里提供一些功能和命令的例子:

Action 功能	Command 命令
Put a cluster in SafeMode （设置群集进入安全模式）	bin/hadoop dfsadmin -safemode enter
Generate a list of Datanodes (产生一个数据节点列表)	bin/hadoop dfsadmin -report
Decommission Datanode datanodename	bin/hadoop dfsadmin -decommission datanodename
使数据节点datanodename 推出	bin/hadoop dfsadmin -decommission datanodename

Browser Interface

浏览器接口

A typical HDFS install configures a web server to expose the HDFS namespace through a configurable TCP port. This allows a user to navigate the HDFS namespace and view the contents of its files using a web browser.

一个典型的HDFS安装通过一个可配置的端口的网站服务器来暴露HDFS名字空间. 他允许用户浏览HDFS名字空间和浏览通过浏览器浏览文件.

Space Reclamation

空间的回收

File Deletes and Undeletes

文件的删除和恢复

When a file is deleted by a user or an application, it is not immediately removed from HDFS. Instead, HDFS first renames it to a file in the /trash directory. The file can be restored quickly as long as it remains in /trash . A file remains in /trash for a configurable amount of time. After the expiry of its life in /trash , the Namenode deletes the file from the HDFS namespace. The deletion of a file causes the blocks associated with the file to be freed. Note that there could be an appreciable time delay between the time a file is deleted by a user and the time of the corresponding increase in free space in HDFS.

当一个文件被用户删除，它没有立即被HDFS文件系统删除. HDFS先把它改名到/trash 目录.文件只要在 /trash 中，就能被快速的恢复. 文件在 /trash 保留一定的时间，是可以配置的. 当超过了/trash 的生命周期, 名字服务器将会删除这个文件. 然后文件的空间被释放. 文件的删除到HDFS存储空间的增加会有一些延时.

A user can Undelete a file after deleting it as long as it remains in the /trash directory. If a user wants to undelete a file that he/she has deleted, he/she can navigate the /trash directory and retrieve the file. The /trash directory contains only the latest copy of the file that was deleted. The /trash directory is just like any other directory with one special feature: HDFS applies specified policies to automatically delete files from this directory. The current default policy is to delete files from /trash that are more than 6 hours old. In the future, this policy will be configurable through a well defined interface.

只要文件在/trash 目录中，文件就能被恢复. 用户如果想恢复/trash 目录中的文件，只需直接访问/trash 这个路径。/trash 目录仅仅包含最近删除文件的copy. /trash 和其他文件一样仅仅多了一个特性: HDFS有一个自动删除其中文件的策略. 当前的策略是，删除的文件在/trash 中，保留6个小时. 以后，这个策略将会通过一个良好的接口（配置文件）配置.

Decrease Replication Factor

减少复制因子

When the replication factor of a file is reduced, the Namenode selects excess replicas that can be deleted. The next Heartbeat transfers this information to the Datanode. The Datanode then removes the corresponding blocks and the corresponding free space appears in the cluster. Once again, there might be a time delay between the completion of the setReplication API call and the appearance of free space in the cluster.

References

HDFS Java API: http://hadoop.apache.org/core/docs/current/api/

HDFS source code: http://hadoop.apache.org/core/version_control.html
