Spark SQL Catalyst源码分析之Analyzer

作者 OopsOutOfMemory ,火龙果软件    发布于 2014-08-21
1667 次浏览     评价:

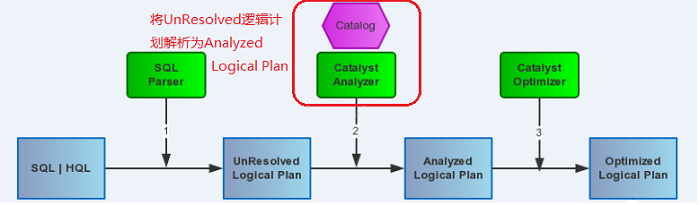

前面几篇文章讲解了Spark SQL的核心执行流程和Spark SQL的Catalyst框架的Sql Parser是怎样接受用户输入sql,经过解析生成Unresolved Logical Plan的。我们记得Spark SQL的执行流程中另一个核心的组件式Analyzer,本文将会介绍Analyzer在Spark SQL里起到了什么作用。

Analyzer位于Catalyst的analysis package下,主要职责是将Sql Parser 未能Resolved的Logical Plan 给Resolved掉。

一、Analyzer构造

Analyzer会使用Catalog和FunctionRegistry将UnresolvedAttribute和UnresolvedRelation转换为catalyst里全类型的对象。
Analyzer里面有fixedPoint对象,一个Seq[Batch].

class Analyzer(catalog: Catalog, registry: FunctionRegistry, caseSensitive: Boolean)
extends RuleExecutor[LogicalPlan] with HiveTypeCoercion {

// TODO: pass this in as a parameter.
val fixedPoint = FixedPoint(100)

val batches: Seq[Batch] = Seq(
Batch("MultiInstanceRelations", Once,
NewRelationInstances),
Batch("CaseInsensitiveAttributeReferences", Once,
(if (caseSensitive) Nil else LowercaseAttributeReferences :: Nil) : _*),
Batch("Resolution", fixedPoint,
ResolveReferences ::
ResolveRelations ::
NewRelationInstances ::
ImplicitGenerate ::
StarExpansion ::
ResolveFunctions ::
GlobalAggregates ::
typeCoercionRules :_*),
Batch("AnalysisOperators", fixedPoint,
EliminateAnalysisOperators)
)

Analyzer里的一些对象解释:

FixedPoint:相当于迭代次数的上限。

/** A strategy that runs until fix point or maxIterations times, whichever comes first. */
case class FixedPoint(maxIterations: Int) extends Strategy

Batch: 批次,这个对象是由一系列Rule组成的,采用一个策略(策略其实是迭代几次的别名吧,eg:Once)

/** A batch of rules. */,
protected case class Batch(name: String, strategy: Strategy, rules: Rule[TreeType]*)

Rule:理解为一种规则,这种规则会应用到Logical Plan 从而将UnResolved 转变为Resolved

abstract class Rule[TreeType <: TreeNode[_]] extends Logging {

/** Name for this rule, automatically inferred based on class name. */
val ruleName: String = {
val className = getClass.getName
if (className endsWith "$") className.dropRight(1) else className
}

def apply(plan: TreeType): TreeType
}

Strategy:最大的执行次数,如果执行次数在最大迭代次数之前就达到了fix point,策略就会停止,不再应用了。

/**
* An execution strategy for rules that indicates the maximum number of executions. If the
* execution reaches fix point (i.e. converge) before maxIterations, it will stop.
*/
abstract class Strategy { def maxIterations: Int }

Analyzer解析主要是根据这些Batch里面定义的策略和Rule来对Unresolved的逻辑计划进行解析的。

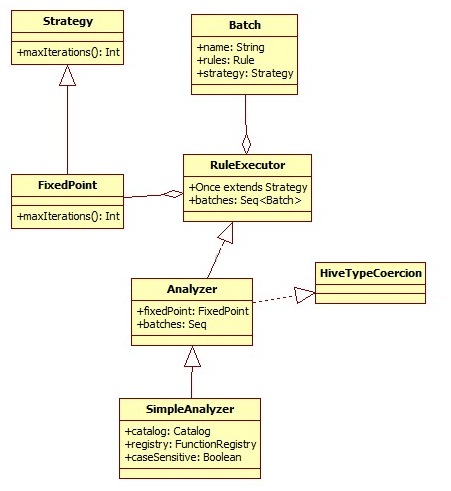

这里Analyzer类本身并没有定义执行的方法,而是要从它的父类RuleExecutor[LogicalPlan]寻找,Analyzer也实现了HiveTypeCosercion,这个类是参考Hive的类型自动兼容转换的原理。如图:

RuleExecutor:执行Rule的执行环境,它会将包含了一系列的Rule的Batch进行执行,这个过程都是串行的。

具体的执行方法定义在apply里:

可以看到这里是一个while循环,每个batch下的rules都对当前的plan进行作用,这个过程是迭代的,直到达到Fix Point或者最大迭代次数。

def apply(plan: TreeType): TreeType = {
var curPlan = plan

batches.foreach { batch =>
val batchStartPlan = curPlan
var iteration = 1
var lastPlan = curPlan
var continue = true

// Run until fix point (or the max number of iterations as specified in the strategy.
while (continue) {
curPlan = batch.rules.foldLeft(curPlan) {
case (plan, rule) =>
val result = rule(plan) //这里将调用各个不同Rule的apply方法,将UnResolved Relations,Attrubute和Function进行Resolve
if (!result.fastEquals(plan)) {
logger.trace(
s"""
|=== Applying Rule ${rule.ruleName} ===
|${sideBySide(plan.treeString, result.treeString).mkString("\n")}
""".stripMargin)
}

result //返回作用后的result plan
}
iteration += 1
if (iteration > batch.strategy.maxIterations) { //如果迭代次数已经大于该策略的最大迭代次数,就停止循环
logger.info(s"Max iterations ($iteration) reached for batch ${batch.name}")
continue = false
}

if (curPlan.fastEquals(lastPlan)) { //如果在多次迭代中不再变化,因为plan有个unique id,就停止循环。
logger.trace(s"Fixed point reached for batch ${batch.name} after $iteration iterations.")
continue = false
}
lastPlan = curPlan
}

if (!batchStartPlan.fastEquals(curPlan)) {
logger.debug(
s"""
|=== Result of Batch ${batch.name} ===
|${sideBySide(plan.treeString, curPlan.treeString).mkString("\n")}
""".stripMargin)
} else {
logger.trace(s"Batch ${batch.name} has no effect.")
}
}

curPlan //返回Resolved的Logical Plan
}

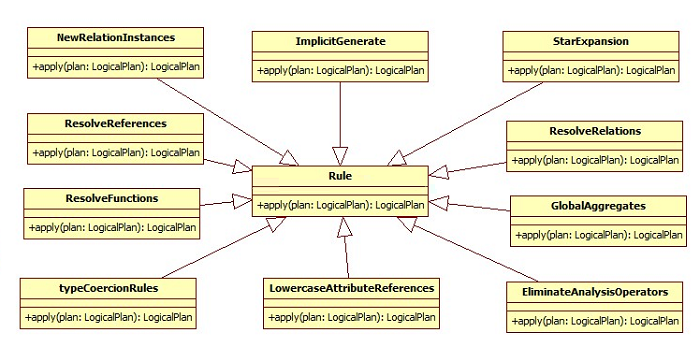

二、Rules介绍

目前Spark SQL 1.0.0的Rule都定义在了Analyzer.scala的内部类。

在batches里面定义了4个Batch。

MultiInstanceRelations、CaseInsensitiveAttributeReferences、Resolution、AnalysisOperators 四个。

这4个Batch是将不同的Rule进行归类,每种类别采用不同的策略来进行Resolve。

2.1、MultiInstanceRelation

如果一个实例在Logical Plan里出现了多次,则会应用NewRelationInstances这儿Rule

Batch("MultiInstanceRelations", Once,
NewRelationInstances)

trait MultiInstanceRelation {
def newInstance: this.type
}

object NewRelationInstances extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = {
val localRelations = plan collect { case l: MultiInstanceRelation => l} //将logical plan应用partial function得到所有MultiInstanceRelation的plan的集合
val multiAppearance = localRelations
.groupBy(identity[MultiInstanceRelation]) //group by操作
.filter { case (_, ls) => ls.size > 1 } //如果只取size大于1的进行后续操作
.map(_._1)
.toSet

//更新plan,使得每个实例的expId是唯一的。
plan transform {
case l: MultiInstanceRelation if multiAppearance contains l => l.newInstance
}
}
}

2.2、LowercaseAttributeReferences

同样是partital function,对当前plan应用,将所有匹配的如UnresolvedRelation的别名alise转换为小写,将Subquery的别名也转换为小写。
总结:这是一个使属性名大小写不敏感的Rule,因为它将所有属性都to lower case了。

object LowercaseAttributeReferences extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
case UnresolvedRelation(databaseName, name, alias) =>
UnresolvedRelation(databaseName, name, alias.map(_.toLowerCase))
case Subquery(alias, child) => Subquery(alias.toLowerCase, child)
case q: LogicalPlan => q transformExpressions {
case s: Star => s.copy(table = s.table.map(_.toLowerCase))
case UnresolvedAttribute(name) => UnresolvedAttribute(name.toLowerCase)
case Alias(c, name) => Alias(c, name.toLowerCase)()
case GetField(c, name) => GetField(c, name.toLowerCase)
}
}
}

2.3、ResolveReferences

将Sql parser解析出来的UnresolvedAttribute全部都转为对应的实际的catalyst.expressions.AttributeReference AttributeReferences
这里调用了logical plan 的resolve方法,将属性转为NamedExepression。

object ResolveReferences extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transformUp {
case q: LogicalPlan if q.childrenResolved =>
logger.trace(s"Attempting to resolve ${q.simpleString}")
q transformExpressions {
case u @ UnresolvedAttribute(name) =>
// Leave unchanged if resolution fails. Hopefully will be resolved next round.
val result = q.resolve(name).getOrElse(u)//转化为NamedExpression
logger.debug(s"Resolving $u to $result")
result
}
}
}

2.4、 ResolveRelations

这个比较好理解,还记得前面Sql parser吗,比如select * from src,这个src表parse后就是一个UnresolvedRelation节点。

这一步ResolveRelations调用了catalog这个对象。Catalog对象里面维护了一个tableName,Logical Plan的HashMap结果。

通过这个Catalog目录来寻找当前表的结构,从而从中解析出这个表的字段,如UnResolvedRelations 会得到一个tableWithQualifiers。(即表和字段)
这也解释了为什么流程图那,我会画一个catalog在上面,因为它是Analyzer工作时需要的meta data。

object ResolveRelations extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
case UnresolvedRelation(databaseName, name, alias) =>
catalog.lookupRelation(databaseName, name, alias)
}
}

2.5、ImplicitGenerate

如果在select语句里只有一个表达式,而且这个表达式是一个Generator(Generator是一个1条记录生成到N条记录的映射)

当在解析逻辑计划时,遇到Project节点的时候,就可以将它转换为Generate类(Generate类是将输入流应用一个函数,从而生成一个新的流)。

object ImplicitGenerate extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
case Project(Seq(Alias(g: Generator, _)), child) =>
Generate(g, join = false, outer = false, None, child)
}
}

2.6 StarExpansion

在Project操作符里,如果是*符号,即select * 语句,可以将所有的references都展开,即将select * 中的*展开成实际的字段。

object StarExpansion extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
// Wait until children are resolved
case p: LogicalPlan if !p.childrenResolved => p
// If the projection list contains Stars, expand it.
case p @ Project(projectList, child) if containsStar(projectList) =>
Project(
projectList.flatMap {
case s: Star => s.expand(child.output) //展开,将输入的Attributeexpand(input: Seq[Attribute]) 转化为Seq[NamedExpression]
case o => o :: Nil
},
child)
case t: ScriptTransformation if containsStar(t.input) =>
t.copy(
input = t.input.flatMap {
case s: Star => s.expand(t.child.output)
case o => o :: Nil
}
)
// If the aggregate function argument contains Stars, expand it.
case a: Aggregate if containsStar(a.aggregateExpressions) =>
a.copy(
aggregateExpressions = a.aggregateExpressions.flatMap {
case s: Star => s.expand(a.child.output)
case o => o :: Nil
}
)
}
/**
* Returns true if `exprs` contains a [[Star]].
*/
protected def containsStar(exprs: Seq[Expression]): Boolean =
exprs.collect { case _: Star => true }.nonEmpty
}
}

2.7 ResolveFunctions

这个和ResolveReferences差不多,这里主要是对udf进行resolve。

将这些UDF都在FunctionRegistry里进行查找。

object ResolveFunctions extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
case q: LogicalPlan =>
q transformExpressions {
case u @ UnresolvedFunction(name, children) if u.childrenResolved =>
registry.lookupFunction(name, children) //看是否注册了当前udf
}
}
}

2.8 GlobalAggregates

全局的聚合,如果遇到了Project就返回一个Aggregate.

object GlobalAggregates extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
case Project(projectList, child) if containsAggregates(projectList) =>
Aggregate(Nil, projectList, child)
}

def containsAggregates(exprs: Seq[Expression]): Boolean = {
exprs.foreach(_.foreach {
case agg: AggregateExpression => return true
case _ =>
})
false
}
}

2.9 typeCoercionRules

这个是Hive里的兼容SQL语法,比如将String和Int互相转换,不需要显示的调用cast xxx as yyy了。如StringToIntegerCasts。

val typeCoercionRules =
PropagateTypes ::
ConvertNaNs ::
WidenTypes ::
PromoteStrings ::
BooleanComparisons ::
BooleanCasts ::
StringToIntegralCasts ::
FunctionArgumentConversion ::
CastNulls ::
Nil

2.10 EliminateAnalysisOperators

将分析的操作符移除,这里仅支持2种,一种是Subquery需要移除,一种是LowerCaseSchema。这些节点都会从Logical Plan里移除。

object EliminateAnalysisOperators extends Rule[LogicalPlan] {
def apply(plan: LogicalPlan): LogicalPlan = plan transform {
case Subquery(_, child) => child //遇到Subquery,不反悔本身,返回它的Child,即删除了该元素
case LowerCaseSchema(child) => child
}
}

三、实践

补充昨天DEBUG的一个例子,这个例子证实了如何将上面的规则应用到Unresolved Logical Plan:

当传递sql语句的时候,的确调用了ResolveReferences将mobile解析成NamedExpression。

可以对照这看执行流程,左边是Unresolved Logical Plan,右边是Resoveld Logical Plan。

先是执行了Batch Resolution,eg: 调用ResovelRalation这个RUle来使 Unresovled Relation 转化为 SparkLogicalPlan并通过Catalog找到了其对于的字段属性。

然后执行了Batch Analysis Operator。eg:调用EliminateAnalysisOperators来将SubQuery给remove掉了。

可能格式显示的不太好,可以向右边拖动下滚动轴看下结果。 :)

val exec = sqlContext.sql("select mobile as mb, sid as id, mobile*2 multi2mobile,
 count(1) times from (select * from temp_shengli_mobile)a where pfrom_id=0.0 group by mobile, sid,  mobile*2")
14/07/21 18:23:32 DEBUG SparkILoop$SparkILoopInterpreter: Invoking: public static java.lang.String $line47.$eval.$print()
14/07/21 18:23:33 INFO Analyzer: Max iterations (2) reached for batch MultiInstanceRelations
14/07/21 18:23:33 INFO Analyzer: Max iterations (2) reached for batch CaseInsensitiveAttributeReferences
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'pfrom_id to pfrom_id#5
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'mobile to mobile#2
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'sid to sid#1
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'mobile to mobile#2
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'mobile to mobile#2
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'sid to sid#1
14/07/21 18:23:33 DEBUG Analyzer$ResolveReferences$: Resolving 'mobile to mobile#2
14/07/21 18:23:33 DEBUG Analyzer:
=== Result of Batch Resolution ===
!Aggregate ['mobile,'sid,('mobile * 2) AS c2#27], ['mobile AS mb#23,'sid AS id#24,('mobile * 2) AS multi2mobile#25,COUNT(1) AS times#26L] Aggregate [mobile#2,sid#1,(CAST(mobile#2, DoubleType) * CAST(2, DoubleType)) AS c2#27], [mobile#2 AS mb#23,sid#1 AS id#24,(CAST(mobile#2, DoubleType) * CAST(2, DoubleType)) AS multi2mobile#25,COUNT(1) AS times#26L]
! Filter ('pfrom_id = 0.0) Filter (CAST(pfrom_id#5, DoubleType) = 0.0)
Subquery a Subquery a
! Project [*] Project [data_date#0,sid#1,mobile#2,pverify_type#3,create_time#4, pfrom_id#5,p_status#6,pvalidate_time#7,feffect_time#8,plastupdate_ip#9,update_time#10,status#11,preserve_int#12]
! UnresolvedRelation None, temp_shengli_mobile, None Subquery temp_shengli_mobile
! SparkLogicalPlan (ExistingRdd [data_date#0,sid#1,mobile#2,pverify_type#3,create_time#4, pfrom_id#5,p_status#6,pvalidate_time#7,feffect_time#8,plastupdate_ip#9,update_time#10,status#11, preserve_int#12], MapPartitionsRDD[4] at mapPartitions at basicOperators.scala:174)
14/07/21 18:23:33 DEBUG Analyzer:
=== Result of Batch AnalysisOperators ===
!Aggregate ['mobile,'sid,('mobile * 2) AS c2#27], ['mobile AS mb#23,'sid AS id#24,('mobile * 2) AS multi2mobile#25,COUNT(1) AS times#26L] Aggregate [mobile#2,sid#1,(CAST(mobile#2, DoubleType) * CAST(2, DoubleType)) AS c2#27], [mobile#2 AS mb#23,sid#1 AS id#24,(CAST(mobile#2, DoubleType) * CAST(2, DoubleType)) AS multi2mobile#25,COUNT(1) AS times#26L]
! Filter ('pfrom_id = 0.0) Filter (CAST(pfrom_id#5, DoubleType) = 0.0)
! Subquery a Project [data_date#0,sid#1,mobile#2,pverify_type#3,create_time#4, pfrom_id#5,p_status#6,pvalidate_time#7,feffect_time#8,plastupdate_ip#9,update_time#10,status#11,preserve_int#12]
! Project [*] SparkLogicalPlan (ExistingRdd [data_date#0,sid#1,mobile#2,pverify_type#3, create_time#4,pfrom_id#5,p_status#6,pvalidate_time#7,feffect_time#8,plastupdate_ip#9, update_time#10,status#11,preserve_int#12], MapPartitionsRDD[4] at mapPartitions at basicOperators.scala:174)
! UnresolvedRelation None, temp_shengli_mobile, None

四、总结

本文从源代码角度分析了Analyzer在对Sql Parser解析出的UnResolve Logical Plan 进行analyze的过程中,所执行的流程。

流程是实例化一个SimpleAnalyzer,定义一些Batch,然后遍历这些Batch在RuleExecutor的环境下,执行Batch里面的Rules,每个Rule会对Unresolved Logical Plan进行Resolve,有些可能不能一次解析出,需要多次迭代,直到达到max迭代次数或者达到fix point。这里Rule里比较常用的就是ResolveReferences、ResolveRelations、StarExpansion、GlobalAggregates、typeCoercionRules和EliminateAnalysisOperators。


 订阅
  捐助
相关文章 相关文档 相关课程



我们该如何设计数据库
数据库设计经验谈
数据库设计过程
数据库编程总结
数据库性能调优技巧
数据库性能调整
数据库性能优化讲座
数据库系统性能调优系列
高性能数据库设计与优化
高级数据库架构师
数据仓库和数据挖掘技术
Hadoop原理、部署与性能调优


MySQL索引背后的数据结构
MySQL性能调优与架构设计
SQL Server数据库备份与恢复
让数据库飞起来 10大DB2优化
oracle的临时表空间写满磁盘
数据库的跨平台设计
更多...


并发、大容量、高性能数据库
高级数据库架构设计师
Hadoop原理与实践
Oracle 数据仓库
数据仓库和数据挖掘
Oracle数据库开发与管理


领先IT公司 android开发平台最佳实践
北京 Android开发技术进阶
某新能源领域企业 Android开发技术
某航天公司 Android、IOS应用软件开发
阿尔卡特 Linux内核驱动
艾默生 嵌入式软件架构设计
西门子 嵌入式架构设计
更多...





每天2个文档/视频
扫描微信二维码订阅
订阅技术月刊
获得每月300个技术资源



关于我们 | 联系我们 | 京ICP备10020922号 京公海网安备110108001071号
