Clang AST 基础学习

作者:Hatter_Long

  890  次浏览      17 次
2023-9-12

编辑推荐:
本文主要介绍了Clang AST的相关内容。希望对您的学习有所帮助 。
本文来自于CSDN,由火龙果软件Alice编辑、推荐。

前言

在之前搭建环境是就已经提到过,Clang 不仅仅可以作为一个编译器前端,同时还可以通过库的形式提供代码解析功能,将 C/C++ 程序源码转换为 abstract syntax tree (AST)语法树以及提供相应接口去操作 AST 语法树。参考资料

AST 结构基础

AST 中的每个节点都是 Decl 或 Stmt 类的一个实例:

Decl : 表示声明。Decl 下级还包含不同类型的子类用于标识不同的声明类型;

例如 FunctionDecl 类用于函数声明,ParmVarDecl 类用于函数参数声明。

Stmt : 表示语句(代码块)。同样存在Stmt的子类,对于不同的语句类型;

例如 IfStmt 用于标识 if 语句, ReturnStmt 类用于标识函数返回。

Example AST

先来一段演示代码:

//Example.c
#include <stdio.h>
int global;
void myPrint(int param) {
    if (param == 1)
        printf("param is 1");
    for (int i = 0 ; i < 10 ; i++ ) {
        global += i;
    }
}
int main(int argc, char *argv[]) {
    int param = 1;
    myPrint(param);
    return 0;
}



Decl

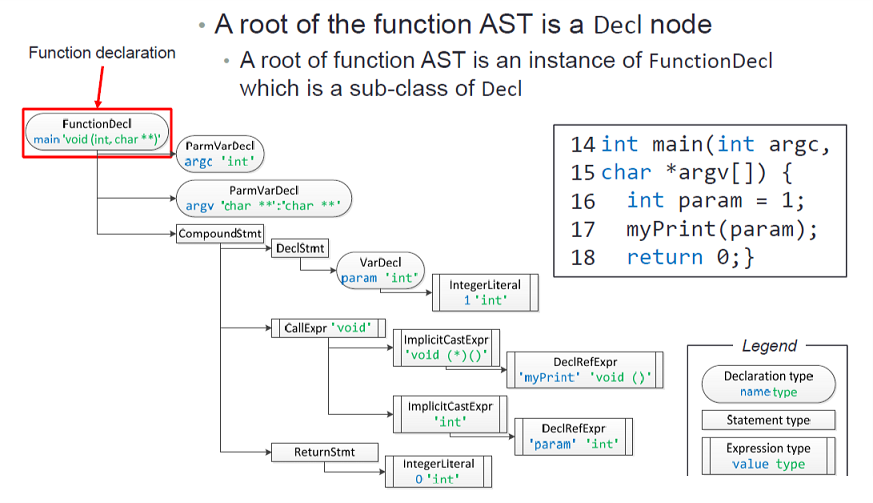

一个函数的根节点是一个 FunctionDecl 实例。

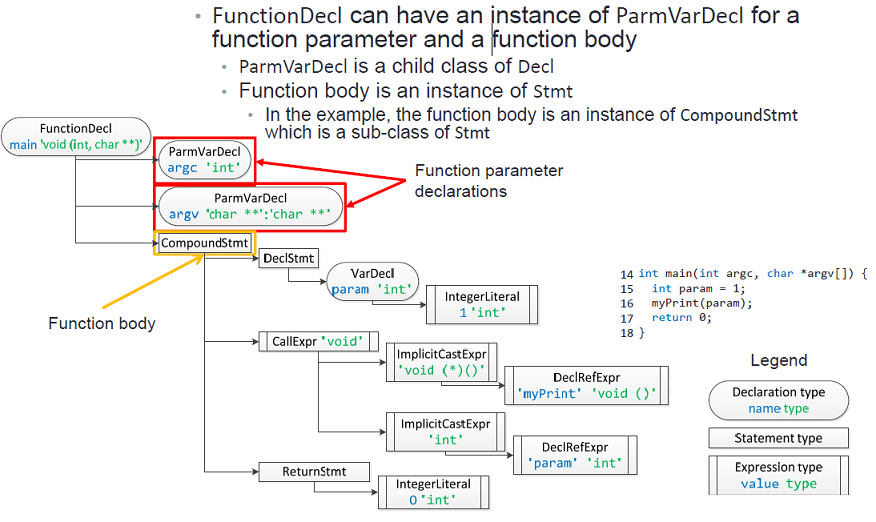

一个 FunctionDecl 可以通过一个 ParmVarDecl 来标识参数,注意 ParmVarDecl 与 FunctionDecl 是同级的,都属于 Decl 子类。

函数体是一个 Stmt 实例,其中函数体使用 CompoundStmt 来标识,同样的它也是 Stmt 的一个子类。

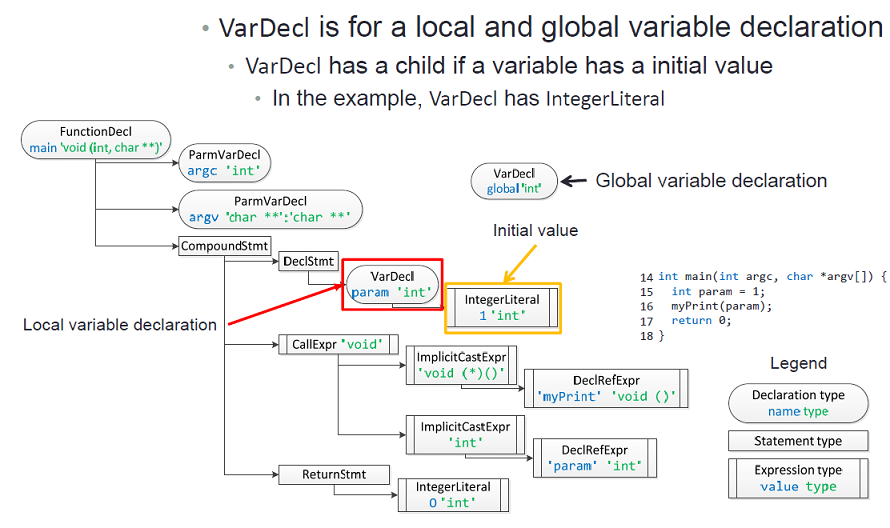

VarDecl 用于标识局部和全局变量的声明,注意如果变量声明时有个初始值,那么 VarDecl 就会有一个初始值的子节点。

FunctionDecl、ParmVarDecl 和 VarDecl 都有一个名称和一个声明类型,在遍历节点查找我们想要的代码块是非常好用的。

Stmt

Stmt 用于标识代码语句,包含的子类:

CompoundStmt类 用来标识代码块;

DeclStmt类 用来标识局部变量声明;

ReturnStmt类 标识函数返回。

Expr 作为 Stmt 的子类,用于标识表达式:

CallExpr 标识函数调用;

ImplicitCastExpr 用于标识隐式强转换的类型;

DeclRefExpr 标识引用声明的变量和函数;

IntegerLiteral 用于整型文字。

Stmt 可能包含一些有着附加信息的子节点,例如 CompoundStmt 标识在一个大括号中代码块的语句,其中的每个语句都是一个包含其他信息的子节点。

在包含附加信息的子节点中,例如 CallExpr 函数调用类,它的第一个子元素是函数指针,其他的子元素是函数参数,其他节点同理。

Expr类 会有一个表达式的类型,例如 CallExpr 中的节点有个 void 的类型。一些 Expr 的子类会包含一个值,例如 初始化的局部或全局变量 IntegerLiteral 子节点,就有一个 1 ‘int’ 。

现在让我们关注下更复杂一点的 myPrint 函数,可以看到在其函数体中包含了 IfStmt 和 ForStmt 两种 Stmt 子类。

IfStmt 有 4 中子节点:

可以看到一个奇怪的的条件变量(->NULL),这是因为 c++ 中可以在 if 语句的 condition 声明一个变量(而不是在 C 中);

做个实验,这样是不是就很清晰了。

接下来是一个条件判断节点;

然后是该 if 判断的代码段;

最后是 Else 的代码段。

ForStmt 有 5 个子节点:

for 循环判断的初始化语句,for(int i = 0; i < 10; i++);

VarDecl类标识的 for 的条件变量定义;

说的有点难懂,做个实验

for 判断条件,for(int i = 0; i < 10; i++);

++段,for(int i = 0; i < 10; i++);

Stmt 标识 for 中的循环代码块。

BinaryOperator 二元操作符,存在两个子节点; UnaryOperator 一元操作符,只有一个子节点。

遍历 Clang AST

通过官方的一篇教程以及下图 可以了解到构建、遍历 AST 树需要的几个功能类,分别是 CompilerInstance、FrontendAction、ParseAST、ASTConsumer、RecursiveASTVisitor。

CompilerInstance: 用于管理 Clang 编译器单个实例的 Helper 类。它主要有两个用处:

它管理运行编译器所需的各种对象,例如预处理器,目标信息和 AST 上下文。

它提供了用于构造和操作通用 Clang 对象的实用程序例程。

从 CompilerInstance 可以了解到两点用处: 第一点对我们构建 AST 用处不大,主要是第二点中是管理和操作 Clang Tool 工具实用的程序历程,这点很有启发。官方教程是通过 ASTFrontendActions 来实现 AST 树遍历。其中我们可以了解到:

在编写基于 Clang 的工具(例如 Clang 插件)或基于 LibTooling 的独立工具时,常见的入口点是 FrontendAction。其允许在编译过程中执行用户特定的操作。如果想要在 Clang AST 树上运行工具,提供了方便的接口 ASTFrontendAction,该接口负责执行操作。剩下的唯一部分是实现 CreateASTConsumer 方法,该方法为每个翻译单元返回 ASTConsumer。

从 FrontendAction 可以了解到如果想运行基于 libTooling 的工具,直接实现一个 ASTFrontendAction 入口以及 ASTConsumer 即可,这样完全没有 ParseAST 什么事情了呀??为了搞清楚我们还是一起来了解一下 clang::ParseAST() 它到底干了什么,这个方法提供了构建和遍历 AST 的功能,接口定义如下:

/// Parse the entire file specified, notifying the ASTConsumer as
/// the file is parsed.
///
/// This operation inserts the parsed decls into the translation
/// unit held by Ctx.
///
/// \param PrintStats Whether to print LLVM statistics related to parsing.
/// \param TUKind The kind of translation unit being parsed.
/// \param CompletionConsumer If given, an object to consume code completion
/// results.
/// \param SkipFunctionBodies Whether to skip parsing of function bodies.
/// This option can be used, for example, to speed up searches for
/// declarations/definitions when indexing.
void ParseAST(Preprocessor &pp, ASTConsumer *C,
            ASTContext &Ctx, bool PrintStats = false,
            TranslationUnitKind TUKind = TU_Complete,
            CodeCompleteConsumer *CompletionConsumer = nullptr,
            bool SkipFunctionBodies = false);



其中注意 ASTConsumer *C ,根据注释描述可知解析完成的源码文件会通过 ASTConsumer 来回传给我们,所以在调用这个接口时我们要实现一个 ASTConsumer 用来获取、遍历 AST 树。查看 ASTConsumer 的定义可以发现许多回调接口,包括不同类型、层级 AST 结构,这下真相大白了,ParseAST() 接口可以说是 Clang AST 树解析和构建的核心了,但是它的特性其实主要在于解析以及通过钩子 ASTConsumer 来把分析后的 AST 节点回传给我们,而我们在使用 ASTFrontendAction 时是会重写 CreateASTConsumer 方法,相当于 ASTFrontendAction 会帮我们调用 ParseAST() 接口并将我们的 ASTConsumer 实例注册进去,这样我们在使用过程中完全不用关心它��,下边举一个编写自己 ASTConsumer 与 ASTFrontendAction 的例子,通过继承 ASTConsumer、ASTFrontendAction 然后重写相关函数接口即可:

//-------------------------------------------------------------------------
//ASTConsumer.h
//-------------------------------------------------------------------------
/// HandleTopLevelDecl - Handle the specified top-level declaration.  This is
/// called by the parser to process every top-level Decl*.
///
/// \returns true to continue parsing, or false to abort parsing.
virtual bool HandleTopLevelDecl(DeclGroupRef D);
///
//-------------------------------------------------------------------------
//FrontendAction.h
//-------------------------------------------------------------------------
/// Provide a default implementation which returns aborts;
/// this method should never be called by FrontendAction clients.
std::unique_ptr<ASTConsumer> CreateASTConsumer(CompilerInstance &CI,
                                                StringRef InFile) override;
/// Callback at the end of processing a single input.
///
/// This is guaranteed to only be called following a successful call to
/// BeginSourceFileAction (and BeginSourceFile).
virtual void EndSourceFileAction() {}
///
//-------------------------------------------------------------------------
//example.cpp
//-------------------------------------------------------------------------
#include <clang/AST/ASTConsumer.h>
#include <clang/Parse/ParseAST.h>
#include <clang/AST/DeclGroup.h>
#include <clang/Frontend/FrontendActions.h>
#include <clang/Rewrite/Core/Rewriter.h>

using namespace clang;
class MyASTConsumer : public ASTConsumer
{
public:
    MyASTConsumer() {}
    bool HandleTopLevelDecl(DeclGroupRef DR) override
    {
        //for (DeclGroupRef::iterator b = DR.begin(), e = DR.end(); b != e; ++b)
        for (auto& b : DR)
        {
            // variable b has each decleration in DR
        }
        return true;
    }
};

// For each source file provided to the tool, a new FrontendAction is created.
class MyFrontendAction : public ASTFrontendAction
{
public:
    MyFrontendAction() = default;
    void EndSourceFileAction() override
    {
        // EndSourceFileAction
    }

    std::unique_ptr<ASTConsumer> CreateASTConsumer(CompilerInstance& CI, StringRef file) override
    {
        return std::make_unique<MyASTConsumer>();
    }
};



ASTConsumer 中有很多 HOOK 函数,我这里以 HandleTopLevelDecl 接口为例,它会返回给我们 top-level 的节点,接下来就是遍历这个节点以下所有的信息。这里需要了解一个新的类模板 RecursiveASTVisitor,我们可以通过这个类模板生成一个自己的 visitor 用来遍历某个节点所有的子节点:

//-------------------------------------------------------------------------
//example.cpp
//-------------------------------------------------------------------------
#include <clang/AST/ASTConsumer.h>
#include <clang/AST/DeclGroup.h>
#include <clang/AST/RecursiveASTVisitor.h>
#include <clang/Parse/ParseAST.h>
#include <clang/Rewrite/Core/Rewriter.h>

#include "spdlog/spdlog.h"

using namespace clang;

class MyASTVisitor : public RecursiveASTVisitor<MyASTVisitor>
{
    bool VisitStmt(Stmt* s)
    {
        spdlog::info("\t{} \n", s->getStmtClassName());
        return true;
    }

    bool VisitFunctionDecl(FunctionDecl* f)
    {
        if (f->hasBody())
        {
            Stmt* FuncBody = f->getBody();
            spdlog::info("{}\n", f->getName());
        }
        return true;
    }
};

class MyASTConsumer : public ASTConsumer
{
public:
    MyASTConsumer(Rewriter& R) {}
    bool HandleTopLevelDecl(DeclGroupRef DR) override
    {
        for (auto& b : DR)
        {
            MyASTVisitor Visitor;
            Visitor.TraverseDecl(b);
        }
        return true;
    }
};

介绍下 RecursiveASTVisitor 类模板,它会按照深度优先的搜索顺序遍历每个 Stmt 节点,并且对 AST 树中的每个 Stmt 节点调用类模板中 VisitStmt() 方法,如果 VisitStmt 返回 false 的话,则递归遍历将结束。

最后还剩下一个疑问点就是,CompilerInstance 该怎么用起来呢?这里就要提到另一个类了 ClangTool,这个类可以让我们编写的功能模块像 clang-tidy、clang-format 等等,变身成命令行程序。大致来说就是将我们的 MyFrontendAction 传给它,会自动的创建 CompilerInstance 来运行,详细的使用方法在下边的例子里会给出。至此编写工具来解析 AST 树的方法介绍完毕了。

Example

接下来将通过上边的知识,分析下之前已经出场过的一个功能模块,一个遍历打印出AST信息,并且可以判断 if 分支的代码:

//-------------------------------------------------------------------------
//example.h
//-------------------------------------------------------------------------
#include <clang/Frontend/FrontendActions.h>
#include <clang/Rewrite/Core/Rewriter.h>

namespace clang
{
// For each source file provided to the tool, a new FrontendAction is created.
class MyFrontendAction : public ASTFrontendAction
{
public:
    MyFrontendAction() = default;
    void EndSourceFileAction() override;

    std::unique_ptr<ASTConsumer> CreateASTConsumer(CompilerInstance& CI, StringRef file) override;

private:
    Rewriter TheRewriter;
};
} // namespace clang

int Function(int argc, const char** argv);
//-------------------------------------------------------------------------
//example.cpp
//-------------------------------------------------------------------------
//------------------------------------------------------------------------------
// Tooling sample. Demonstrates:
//
// * How to write a simple source tool using libTooling.
// * How to use RecursiveASTVisitor to find interesting AST nodes.
// * How to use the Rewriter API to rewrite the source code.
//
// Eli Bendersky (eliben@gmail.com)
// This code is in the public domain
//------------------------------------------------------------------------------
#include <sstream>
#include <string>

#include "clang/AST/AST.h"
#include "clang/AST/ASTConsumer.h"
#include "clang/AST/RecursiveASTVisitor.h"
#include "clang/Frontend/ASTConsumers.h"
#include "clang/Frontend/CompilerInstance.h"
#include "clang/Tooling/CommonOptionsParser.h"
#include "clang/Tooling/Tooling.h"
#include "llvm/ADT/STLExtras.h"
#include "llvm/Support/raw_ostream.h"


#include "Function/LoopConvert.h"

using namespace clang;
using namespace clang::driver;
using namespace clang::tooling;

static llvm::cl::OptionCategory ToolingSampleCategory("Tooling Sample");

// By implementing RecursiveASTVisitor, we can specify which AST nodes
// we're interested in by overriding relevant methods.
class MyASTVisitor : public RecursiveASTVisitor<MyASTVisitor>
{
public:
    MyASTVisitor(Rewriter& R) : TheRewriter(R) {}

    bool VisitStmt(Stmt* s)
    {
        // Only care about If statements.
        if (isa<IfStmt>(s))
        {
            auto* IfStatement = cast<IfStmt>(s);
            Stmt* Then = IfStatement->getThen();

            TheRewriter.InsertText(Then->getBeginLoc(), "// the 'if' part\n", true, true);

            Stmt* Else = IfStatement->getElse();
            if (Else)
                TheRewriter.InsertText(Else->getBeginLoc(), "// the 'else' part\n", true, true);
        }

        return true;
    }

    bool VisitFunctionDecl(FunctionDecl* f)
    {
        // Only function definitions (with bodies), not declarations.
        if (f->hasBody())
        {
            Stmt* FuncBody = f->getBody();

            // Type name as string
            QualType QT = f->getReturnType();
            std::string TypeStr = QT.getAsString();

            // Function name
            DeclarationName DeclName = f->getNameInfo().getName();
            std::string FuncName = DeclName.getAsString();

            // Add comment before
            std::stringstream SSBefore;
            SSBefore << "// Begin function " << FuncName << " returning " << TypeStr << "\n";
            SourceLocation ST = f->getSourceRange().getBegin();
            TheRewriter.InsertText(ST, SSBefore.str(), true, true);

            // And after
            std::stringstream SSAfter;
            SSAfter << "\n// End function " << FuncName;
            ST = FuncBody->getEndLoc().getLocWithOffset(1);
            TheRewriter.InsertText(ST, SSAfter.str(), true, true);
        }

        return true;
    }

private:
    Rewriter& TheRewriter;
};

// Implementation of the ASTConsumer interface for reading an AST produced
// by the Clang parser.
class MyASTConsumer : public ASTConsumer
{
public:
    MyASTConsumer(Rewriter& R) : Visitor(R) {}

    // Override the method that gets called for each parsed top-level
    // declaration.
    bool HandleTopLevelDecl(DeclGroupRef DR) override
    {
        for (auto& b : DR)
        {
            // Traverse the declaration using our AST visitor.
            Visitor.TraverseDecl(b);
            b->dump();
        }
        return true;
    }

private:
    MyASTVisitor Visitor;
};

std::unique_ptr<ASTConsumer> MyFrontendAction::CreateASTConsumer(CompilerInstance& CI, StringRef file)
{
    llvm::errs() << "** Creating AST consumer for: " << file << "\n";
    TheRewriter.setSourceMgr(CI.getSourceManager(), CI.getLangOpts());
    return std::make_unique<MyASTConsumer>(TheRewriter);
}
void MyFrontendAction::EndSourceFileAction()
{
    SourceManager& SM = TheRewriter.getSourceMgr();
    llvm::errs() << "** EndSourceFileAction for: " << SM.getFileEntryForID(SM.getMainFileID())->getName() << "\n";

    // Now emit the rewritten buffer.
    TheRewriter.getEditBuffer(SM.getMainFileID()).write(llvm::outs());
}

int main(int argc, const char** argv)
{
    CommonOptionsParser op(argc, argv, ToolingSampleCategory);
    ClangTool Tool(op.getCompilations(), op.getSourcePathList());

    // ClangTool::run accepts a FrontendActionFactory, which is then used to
    // create new objects implementing the FrontendAction interface. Here we use
    // the helper newFrontendActionFactory to create a default factory that will
    // return a new MyFrontendAction object every time.
    // To further customize this, we could create our own factory class.
    return Tool.run(newFrontendActionFactory<MyFrontendAction>().get());
}



使用命令行来初始化 Clang 工具,这里需要使用 CommonOptionsParser 类。查看注释可以了解到,这个类是所有命令行 clang 工具公用的命令解析器,它可以解析命令行命令参数,例如指定 compilation commands database 链接路径,或者用户执行时指定的其他指令。

/// A parser for options common to all command-line Clang tools.
///
/// Parses a common subset of command-line arguments, locates and loads a
/// compilation commands database and runs a tool with user-specified action. It
/// also contains a help message for the common command-line options.
///
/// An example of usage:
/// \code
/// #include "clang/Frontend/FrontendActions.h"
/// #include "clang/Tooling/CommonOptionsParser.h"
/// #include "clang/Tooling/Tooling.h"
/// #include "llvm/Support/CommandLine.h"
///
/// using namespace clang::tooling;
/// using namespace llvm;
///
/// static cl::OptionCategory MyToolCategory("My tool options");
/// static cl::extrahelp CommonHelp(CommonOptionsParser::HelpMessage);
/// static cl::extrahelp MoreHelp("\nMore help text...\n");
/// static cl::opt<bool> YourOwnOption(...);
/// ...
///
/// int main(int argc, const char **argv) {
///   CommonOptionsParser OptionsParser(argc, argv, MyToolCategory);
///   ClangTool Tool(OptionsParser.getCompilations(),
///                  OptionsParser.getSourcePathList());
///   return Tool.run(newFrontendActionFactory<SyntaxOnlyAction>().get());
/// }
/// \endcode
class CommonOptionsParser {...}



ClangTool::run accepts a FrontendActionFactory 这也就是我们想要运行自己编写的 FrontendAction 入口了,将其传入即可。

当构建 AST 树后会调用 MyFrontendAction::CreateASTConsumer 来使用我们客制化实现的 ASTConsumer,并将相关节点返回给我们。MyFrontendAction 中可以发现有一个 TheRewriter 成员,这是一个重写器,主要是用来将我们 if else 添加完注释的代码进行回写。

HandleTopLevelDecl 会回调给我们相应的节点信息,使用 MyASTVisitor 来实现我们想要的功能即可。

其他注意

通过重写了 virtual bool HandleTopLevelDecl (DeclGroupRef D) 来实现了遍历 top-level 的 Decl,这个接口有个特点是每次分析到一个顶层定义时就会回调,也就是说调用这个接口时文件还没有分析完成,相当于一边分析,一边调用,

DeclGroupRef 一组定义的列表节点引用。

还有一个 virtual void HandleTranslationUnit (ASTContext &Ctx) 当整个翻译单元的 AST 已被解析时,将调用此方法。

ASTContext 包含在整个文件的语义分析中所查找到的长寿 AST 节点,例如类型以及定义。也就是说包含了文件分析后所有 AST 关键节点信息。


890 次浏览       17
相关文章

编译原理--C语言C文件和头文件的关系
用 C 语言开发一门编程语言 — 抽象语法树
C语言 | 嵌入式C语言编程规范
详解C语言数组越界及其避免方法

相关文档

C语言-指针讲解
详解C语言中的回调函数
ARM下C语言编程解析
设计模式的C语言实现
相关课程

C++高级编程
C++并行编程与操作
C++ 11,14,17,20新特性
C/C++开发基础

最新活动计划
UAF架构体系与实践 5-17[北京]
用户体验与界面设计 5-22[北京]
MBSE(基于模型的系统工程)6-20[北京]
大模型微调原理与实操 6-20[厦门]
图数据库与知识图谱 6-27[北京]
Linux内核编程及设备驱动 7-25[北京]


最新文章
编译原理--C语言C文件和头文件的关系
用 C 语言开发一门编程语言 — 抽象语法树
C语言 | 嵌入式C语言编程规范
详解C语言数组越界及其避免方法
最新课程
C++高级编程
C++并行编程与操作
C++ 11,14,17,20新特性
C/C++开发基础
成功案例
某航天科工单位 C++新特性与开发进阶
北京 C#高级开发技术
四方电气集团 嵌入式高级C语言编程
北大方正 C语言单元测试实践
