从12306网站新验证码看Web验证码设计与破解

作者:陈庆翔 来源:51CTO 发布于: 2015-03-23
  2863  次浏览      16


2015年3月16日,铁路官方购票网站12306又出新招,在登录界面推出了全新的验证方式,用户在填写好登录名和密码之后,还要准确的选取图片验证码才能登陆成功。据悉,12306验证码改版后,目前所有抢票工具都已经无法登录。

多么惨绝人寰的消息,小编相信各大互联网公司都在潜心钻研新的抢票助手,来破解全新的验证码模式。

下面小编带大家看看各种验证码的设计原理及其破解方法。

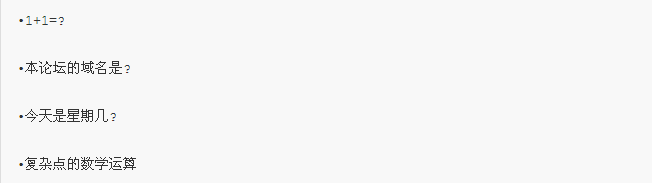

首先是纯文本式验证码,是比较原始的一种。

这种验证码并不符合验证码的定义,因为只有自动生成的问题才能用做验证码,这种文字验证码都是从题库里选择出来的,数量有限。破解方式也很简单,多 刷新几次,建立题库和对应的答案,用正则从网页里抓取问题,寻找匹配的答案后破解。也有些用随机生成的数学公式,比如 随机数 [+-*/]随机运算符 随机数=?,小学生水平的程序员也可以搞定……

这种验证码也不是一无是处,对于很多见到表单就来一发的spam bot来说,实在没必要单独为了一个网站下那么大功夫。对于铁了心要在你的网站大量灌水的人,这种验证码和没有一样。

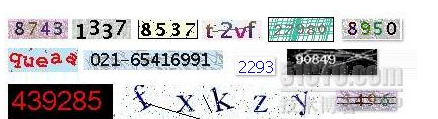

第二个是目前比较主流的图片验证码:

这类图片验证码的原理就是通过字符的粘连增加及其识别的难度,而上边这种一般用于不大的网站。

这类验证码处理方式:

图片预处理

怎么去掉背景干扰呢?可以注意到每个验证码数字或字母都是同一颜色,所以把验证码平均分成5份

计算每个区域的颜色分布,除了白色之外,颜色值最多的就是验证码的颜色,因此很容易将背景去掉

代码:

.public static BufferedImage removeBackgroud(String picFile)
2.            throws Exception {
3.        BufferedImage img = ImageIO.read(new File(picFile));
4.        img = img.getSubimage(1, 1, img.getWidth() - 2, img.getHeight() - 2);
5.        int width = img.getWidth();
6.        int height = img.getHeight();
7.        double subWidth = (double) width / 5.0;
8.        for (int i = 0; i < 5; i++) {
9.            Map<Integer, Integer> map = new HashMap<Integer, Integer>();
10.            for (int x = (int) (1 + i * subWidth); x < (i + 1) * subWidth
11.                    && x < width - 1; ++x) {
12.                for (int y = 0; y < height; ++y) {
13.                    if (isWhite(img.getRGB(x, y)) == 1)
14.                        continue;
15.                    if (map.containsKey(img.getRGB(x, y))) {
16.                        map.put(img.getRGB(x, y), map.get(img.getRGB(x, y)) + 1);
17.                    } else {
18.                        map.put(img.getRGB(x, y), 1);
19.                    }
20.                }
21.            }
22.            int max = 0;
23.            int colorMax = 0;
24.            for (Integer color : map.keySet()) {
25.                if (max < map.get(color)) {
26.                    max = map.get(color);
27.                    colorMax = color;
28.                }
29.            }
30.            for (int x = (int) (1 + i * subWidth); x < (i + 1) * subWidth
31.                    && x < width - 1; ++x) {
32.                for (int y = 0; y < height; ++y) {
33.                    if (img.getRGB(x, y) != colorMax) {
34.                        img.setRGB(x, y, Color.WHITE.getRGB());
35.                    } else {
36.                        img.setRGB(x, y, Color.BLACK.getRGB());
37.                    }
38.                }
39.            }
40.        }
41.        return img;

接着是对图片进行纵向扫描进行切割。

再对每一部分横向扫描

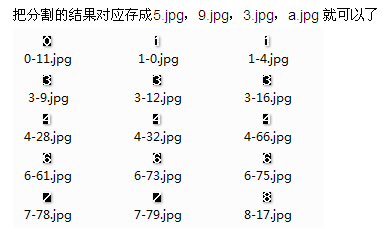

然后进行训练

最后因为固定大小,识别跟 验证码识别--1 里面一样,像素比较就可以了。

源码:

1.public class ImagePreProcess2 {
2.
3.    private static Map<BufferedImage, String> trainMap = null;
4.    private static int index = 0;
5.
6.    public static int isBlack(int colorInt) {
7.        Color color = new Color(colorInt);
8.        if (color.getRed() + color.getGreen() + color.getBlue() <= 100) {
9.            return 1;
10.        }
11.        return 0;
12.    }
13.
14.    public static int isWhite(int colorInt) {
15.        Color color = new Color(colorInt);
16.        if (color.getRed() + color.getGreen() + color.getBlue() > 100) {
17.            return 1;
18.        }
19.        return 0;
20.    }
21.
22.    public static BufferedImage removeBackgroud(String picFile)
23.            throws Exception {
24.        BufferedImage img = ImageIO.read(new File(picFile));
25.        return img;
26.    }
27.
28.    public static BufferedImage removeBlank(BufferedImage img) throws Exception {
29.        int width = img.getWidth();
30.        int height = img.getHeight();
31.        int start = 0;
32.        int end = 0;
33.        Label1: for (int y = 0; y < height; ++y) {
34.            int count = 0;
35.            for (int x = 0; x < width; ++x) {
36.                if (isWhite(img.getRGB(x, y)) == 1) {
37.                    count++;
38.                }
39.                if (count >= 1) {
40.                    start = y;
41.                    break Label1;
42.                }
43.            }
44.        }
45.        Label2: for (int y = height - 1; y >= 0; --y) {
46.            int count = 0;
47.            for (int x = 0; x < width; ++x) {
48.                if (isWhite(img.getRGB(x, y)) == 1) {
49.                    count++;
50.                }
51.                if (count >= 1) {
52.                    end = y;
53.                    break Label2;
54.                }
55.            }
56.        }
57.        return img.getSubimage(0, start, width, end - start + 1);
58.    }
59.
60.    public static List splitImage(BufferedImage img)
61.            throws Exception {
62.        List subImgs = new ArrayList();
63.        int width = img.getWidth();
64.        int height = img.getHeight();
65.        List weightlist = new ArrayList();
66.        for (int x = 0; x < width; ++x) {
67.            int count = 0;
68.            for (int y = 0; y < height; ++y) {
69.                if (isWhite(img.getRGB(x, y)) == 1) {
70.                    count++;
71.                }
72.            }
73.            weightlist.add(count);
74.        }
75.        for (int i = 0; i < weightlist.size();) {
76.            int length = 0;
77.            while (weightlist.get(i++) > 1) {
78.                length++;
79.            }
80.            if (length > 12) {
81.                subImgs.add(removeBlank(img.getSubimage(i - length - 1, 0,
82.                        length / 2, height)));
83.                subImgs.add(removeBlank(img.getSubimage(i - length / 2 - 1, 0,
84.                        length / 2, height)));
85.            } else if (length > 3) {
86.                subImgs.add(removeBlank(img.getSubimage(i - length - 1, 0,
87.                        length, height)));
88.            }
89.        }
90.        return subImgs;
91.    }
92.
93.    public static Map<BufferedImage, String> loadTrainData() throws Exception {
94.        if (trainMap == null) {
95.            Map<BufferedImage, String> map = new HashMap<BufferedImage, String>();
96.            File dir = new File("train2");
97.            File[] files = dir.listFiles();
98.            for (File file : files) {
99.                map.put(ImageIO.read(file), file.getName().charAt(0) + "");
100.            }
101.            trainMap = map;
102.        }
103.        return trainMap;
104.    }
105.
106.    public static String getSingleCharOcr(BufferedImage img,
107.            Map<BufferedImage, String> map) {
108.        String result = "";
109.        int width = img.getWidth();
110.        int height = img.getHeight();
111.        int min = width * height;
112.        for (BufferedImage bi : map.keySet()) {
113.            int count = 0;
114.            int widthmin = width < bi.getWidth() ? width : bi.getWidth();
115.            int heightmin = height < bi.getHeight() ? height : bi.getHeight();
116.            Label1: for (int x = 0; x < widthmin; ++x) {
117.                for (int y = 0; y < heightmin; ++y) {
118.                    if (isWhite(img.getRGB(x, y)) != isWhite(bi.getRGB(x, y))) {
119.                        count++;
120.                        if (count >= min)
121.                            break Label1;
122.                    }
123.                }
124.            }
125.            if (count < min) {
126.                min = count;
127.                result = map.get(bi);
128.            }
129.        }
130.        return result;
131.    }
132.
133.    public static String getAllOcr(String file) throws Exception {
134.        BufferedImage img = removeBackgroud(file);
135.        List listImg = splitImage(img);
136.        Map<BufferedImage, String> map = loadTrainData();
137.        String result = "";
138.        for (BufferedImage bi : listImg) {
139.            result += getSingleCharOcr(bi, map);
140.        }
141.        ImageIO.write(img, "JPG", new File("result2//" + result + ".jpg"));
142.        return result;
143.    }
144.
145.    public static void downloadImage() {
146.        HttpClient httpClient = new HttpClient();
147.        GetMethod getMethod = null;
148.        for (int i = 0; i < 30; i++) {
149.            getMethod = new GetMethod("http://www.pkland.net/img.php?key="
150.                    + (2000 + i));
151.            try {
152.                // 执行getMethod
153.                int statusCode = httpClient.executeMethod(getMethod);
154.                if (statusCode != HttpStatus.SC_OK) {
155.                    System.err.println("Method failed: "
156.                            + getMethod.getStatusLine());
157.                }
158.                // 读取内容
159.                String picName = "img2//" + i + ".jpg";
160.                InputStream inputStream = getMethod.getResponseBodyAsStream();
161.                OutputStream outStream = new FileOutputStream(picName);
162.                IOUtils.copy(inputStream, outStream);
163.                outStream.close();
164.                System.out.println(i + "OK!");
165.            } catch (Exception e) {
166.                e.printStackTrace();
167.            } finally {
168.                // 释放连接
169.                getMethod.releaseConnection();
170.            }
171.        }
172.    }
173.
174.    public static void trainData() throws Exception {
175.        File dir = new File("temp");
176.        File[] files = dir.listFiles();
177.        for (File file : files) {
178.            BufferedImage img = removeBackgroud("temp//" + file.getName());
179.            List listImg = splitImage(img);
180.            if (listImg.size() == 4) {
181.                for (int j = 0; j < listImg.size(); ++j) {
182.                    ImageIO.write(listImg.get(j), "JPG", new File("train2//"
183.                            + file.getName().charAt(j) + "-" + (index++)
184.                            + ".jpg"));
185.                }
186.            }
187.        }
188.    }
189.
190.    /**
191.     * @param args
192.     * @throws Exception
193.     */
194.    public static void main(String[] args) throws Exception {
195.        // downloadImage();
196.        for (int i = 0; i < 30; ++i) {
197.            String text = getAllOcr("img2//" + i + ".jpg");
198.            System.out.println(i + ".jpg = " + text);
199.        }
200.    }
201.}

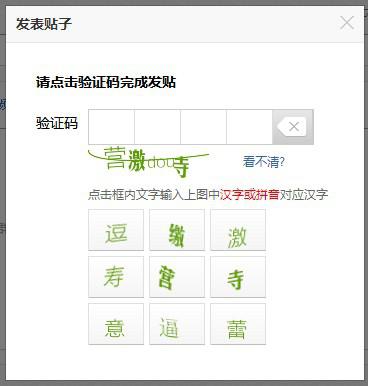

像BAT这种巨头的验证码通过干扰线、加粗不加粗混用、采用中文常用字(中文常用字大概有5000个,笔画繁复,形似字多,比起26个字母难度高很多)、不同的字体混用,比如楷体、宋体、幼圆混用、拼音,扭曲字体、需要准确识别13位汉字,大大增加了失败概率。

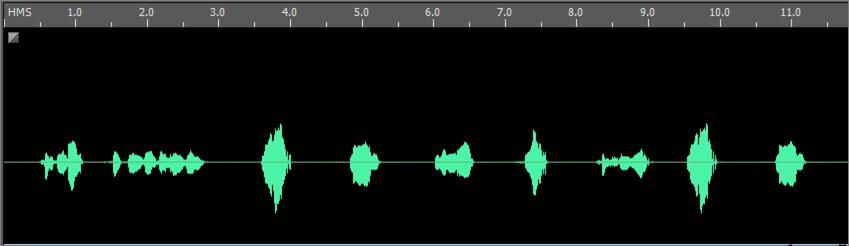

当然除了主流的图片验证码外,一些网站为了照顾视力不好的用户,采用语音验证码。一般这种验证码是机器生成一段读数字的语音。但是在这方面上很多程序员都偷懒了,预先找了10个数字的声音录音,然后生成的时候把他们随机拼到一起,结果就是这样:

设计原理如下:

整体效果

1.字符数量一定范围内随机

2.字体大小一定范围内随机

3.波浪扭曲(角度方向一定范围内随机)

4.防识别

5.不要过度依赖防识别技术

6.不要使用过多字符集-用户体验差

7.防分割

重叠粘连比干扰线效果好

1.备用计划

2.同样强度完全不同的一套验证码

既然原理都已经知道了,那么如何破解就变得简单了。

但是问题来了,这次12306的验证码居然是图片,以上方式都不能使用,那么就不能破解了么?

有人认为12306的网站图片内存不会太大,完全可以扒下来,然后进行破解。当然这是纸上谈兵,有一种非常先进又非常原始的办法叫做“网络打码”或者“人肉打码”

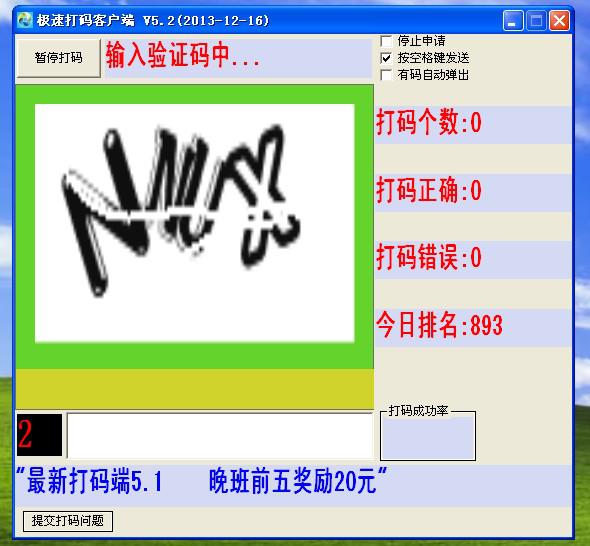

一些技术大牛把验证码发送的自制的“打码”软件上,而一些“打码工”通过这个程序来输入机器自动注册,出来的验证码,传输到自动注册机器,完成验证。

目前来看这种简单粗暴的方法可以应对目前的情况。

结语:

12306这次可谓出了杀招,把所有抢票软件一刀砍死,黄牛们不开心我们就可以买到票了。既解决了黄牛问题又为广大程序员出了一道难题。


2863 次浏览       16
相关文章

企业架构、TOGAF与ArchiMate概览
架构师之路-如何做好业务建模?
大型网站电商网站架构案例和技术架构的示例
完整的Archimate视点指南(包括示例)
相关文档

数据中台技术架构方法论与实践
适用ArchiMate、EA 和 iSpace进行企业架构建模
Zachman企业架构框架简介
企业架构让SOA落地
相关课程

云平台与微服务架构设计
中台战略、中台建设与数字商业
亿级用户高并发、高可用系统架构
高可用分布式架构设计与实践
最新课程计划
信息架构建模(基于UML+EA)3-21[北京]
软件架构设计师 3-21[北京]
图数据库与知识图谱 3-25[北京]
业务架构设计 4-11[北京]
SysML和EA系统设计与建模 4-22[北京]
DoDAF规范、模型与实例 5-23[北京]

专家视角看IT与架构
软件架构设计
面向服务体系架构和业务组件
人人网移动开发架构
架构腐化之谜
谈平台即服务PaaS


面向应用的架构设计实践
单元测试+重构+设计模式
软件架构师—高级实践
软件架构设计方法、案例与实践
嵌入式软件架构设计—高级实践
SOA体系结构实践


锐安科技 软件架构设计方法
成都 嵌入式软件架构设计
上海汽车 嵌入式软件架构设计
北京 软件架构设计
上海 软件架构设计案例与实践
北京 架构设计方法案例与实践
深圳 架构设计方法案例与实践
嵌入式软件架构设计—高级实践
更多...
