const struct file_operations hugetlbfs_file_operations = {
 .read= hugetlbfs_read,
 .mmap= hugetlbfs_file_mmap,
 .fsync= noop_fsync,
 .get_unmapped_area= hugetlb_get_unmapped_area,
 .llseek= default_llseek,
 };

static int hugetlbfs_file_mmap(struct file *file, struct vm_area_struct *vma)
 {
 struct inode *inode = file->f_path.dentry->d_inode;
 loff_t len, vma_len;
 int ret;
 struct hstate *h = hstate_file(file);

/*
* vma address alignment (but not the pgoff alignment) has
* already been checked by prepare_ 大页 _range. If you add
* any error returns here, do so after setting VM_HUGETLB, so
* is_vm_hugetlb_page tests below unmap_region go the right
* way when do_mmap_pgoff unwinds (may be important on powerpc
* and ia64).
*/
vma->vm_flags |= VM_HUGETLB | VM_RESERVED;
vma->vm_ops = &hugetlb_vm_ops;

if (vma->vm_pgoff & ~(huge_page_mask(h) >> PAGE_SHIFT))
return -EINVAL;

vma_len = (loff_t)(vma->vm_end - vma->vm_start);

mutex_lock(&inode->i_mutex);
file_accessed(file);

ret = -ENOMEM
len = vma_len + ((loff_t)vma->vm_pgoff << PAGE_SHIFT);

if (hugetlb_reserve_pages(inode,
vma->vm_pgoff >> huge_page_order(h),
len >> huge_page_shift(h), vma,
vma->vm_flags))
goto out;

ret = 0;
hugetlb_prefault_arch_hook(vma->vm_mm);
if (vma->vm_flags & VM_WRITE && inode->i_size < len)
inode->i_size = len;
out:
mutex_unlock(&inode->i_mutex);

return ret;
}


 int hugetlb_reserve_pages(struct inode *inode,
 long from, long to,
 struct vm_area_struct *vma,
 vm_flags_t vm_flags)
 {
 long ret, chg;
 struct hstate *h = hstate_inode(inode);

/*
* Only apply 大页 reservation if asked. At fault time, an
* attempt will be made for VM_NORESERVE to allocate a page
* and filesystem quota without using reserves
*/
if (vm_flags & VM_NORESERVE)
return 0;

/*
* Shared mappings base their reservation on the number of pages that
* are already allocated on behalf of the file. Private mappings need
* to reserve the full area even if read-only as mprotect() may be
* called to make the mapping read-write. Assume !vma is a shm mapping
*/
if (!vma || vma->vm_flags & VM_MAYSHARE)
chg = region_chg(&inode->i_mapping->private_list, from, to);
else {
struct resv_map *resv_map = resv_map_alloc();
if (!resv_map)
return -ENOMEM;

chg = to - from;

set_vma_resv_map(vma, resv_map);
set_vma_resv_flags(vma, HPAGE_RESV_OWNER);
}

if (chg < 0)
return chg;

/* There must be enough filesystem quota for the mapping */
if (hugetlb_get_quota(inode->i_mapping, chg))
return -ENOSPC;

/*
* Check enough 大页 s are available for the reservation.
* Hand back the quota if there are not
*/
ret = hugetlb_acct_memory(h, chg);
if (ret < 0) {
hugetlb_put_quota(inode->i_mapping, chg);
return ret;
}

/*
* Account for the reservations made. Shared mappings record regions
* that have reservations as they are shared by multiple VMAs.
* When the last VMA disappears, the region map says how much
* the reservation was and the page cache tells how much of
* the reservation was consumed. Private mappings are per-VMA and
* only the consumed reservations are tracked. When the VMA
* disappears, the original reservation is the VMA size and the
* consumed reservations are stored in the map. Hence, nothing
* else has to be done for private mappings here
*/
if (!vma || vma->vm_flags & VM_MAYSHARE)
region_add(&inode->i_mapping->private_list, from, to);
return 0;
}

const struct vm_operations_struct hugetlb_vm_ops = {
 .fault = hugetlb_vm_op_fault,
 .open = hugetlb_vm_op_open,
 .close = hugetlb_vm_op_close,
 };

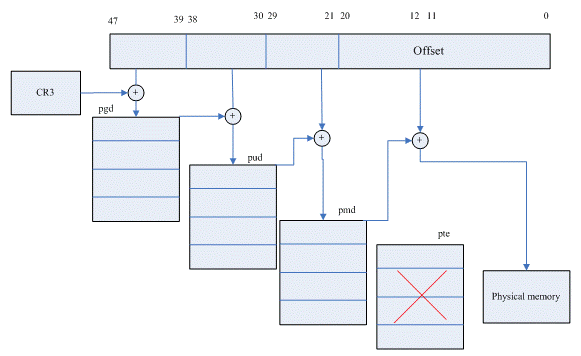

 pte_t *huge_pte_offset(struct mm_struct *mm, unsigned long addr)
 {
 pgd_t *pgd;
 pud_t *pud;
 pmd_t *pmd = NULL;

pgd = pgd_offset(mm, addr);
if (pgd_present(*pgd)) {
pud = pud_offset(pgd, addr);
if (pud_present(*pud)) {
if (pud_large(*pud))
return (pte_t *)pud;
pmd = pmd_offset(pud, addr);
}
}
return (pte_t *) pmd;
}

#include <stdlib.h>
 #include <stdio.h>
 #include <unistd.h>
 #include <sys/mman.h>
 #include <fcntl.h>

#define FILE_NAME "/mnt/ 大页 file"
#define LENGTH (256UL*1024*1024)
#define PROTECTION (PROT_READ | PROT_WRITE)

/* Only ia64 requires this */
#ifdef __ia64__
#define ADDR (void *)(0x8000000000000000UL)
#define FLAGS (MAP_SHARED | MAP_FIXED)
#else
#define ADDR (void *)(0x0UL)
#define FLAGS (MAP_SHARED)
#endif

static void check_bytes(char *addr)
{
printf("First hex is %x\n", *((unsigned int *)addr));
}

static void write_bytes(char *addr)
{
unsigned long i;

for (i = 0; i < LENGTH; i++)
*(addr + i) = (char)i;
}

static void read_bytes(char *addr)
{
unsigned long i;

check_bytes(addr);
for (i = 0; i < LENGTH; i++)
if (*(addr + i) != (char)i) {
printf("Mismatch at %lu\n", i);
break;
}
}

int main(void)
{
void *addr;
int fd;

fd = open(FILE_NAME, O_CREAT | O_RDWR, 0755);
if (fd < 0) {
perror("Open failed");
exit(1);
}

addr = mmap(ADDR, LENGTH, PROTECTION, FLAGS, fd, 0);
if (addr == MAP_FAILED) {
perror("mmap");
unlink(FILE_NAME);
exit(1);
}

printf("Returned address is %p\n", addr);
check_bytes(addr);
write_bytes(addr);
read_bytes(addr);

munmap(addr, LENGTH);
close(fd);
unlink(FILE_NAME);

return 0;
}
